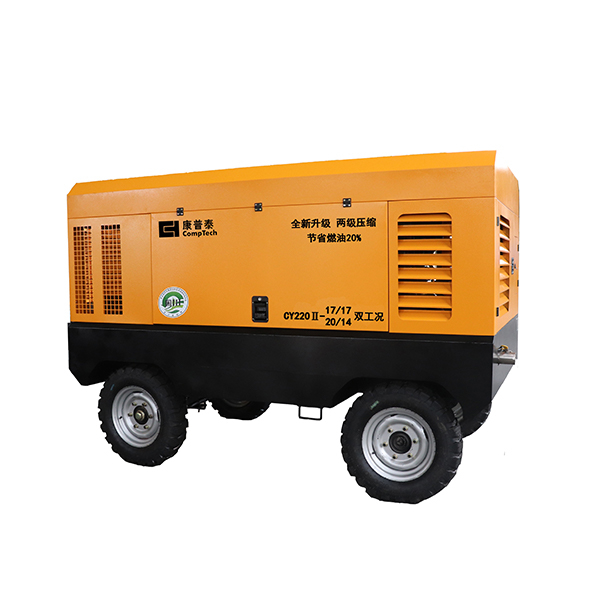

Diesel Portable Screw Air Compressor

Comptech diesel portable screw air compressor reliable and durable, superior performance, ensure low energy consumption, high performance, provide continuous, sufficient pressure and flow, suitable for harsh conditions, with heavy-load chassis, compact and flexible, easy to maintain.

Product Categories:
Air Compressor

Availability:



Inquire

Product Description

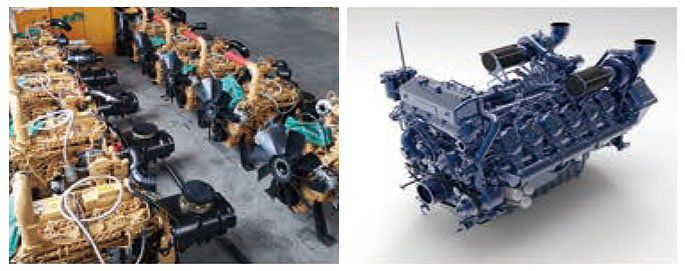

The surging power

＞Choose cummins, Yuchai and other well-known brands of national three emission engine.

＞Turbocharging, high pressure common rail, strong power, good economy, low fuel consumption, small vibration.

＞Strong environmental adaptability and good cold start performance.

＞Wide distribution of service outlets, timely maintenance and repair.

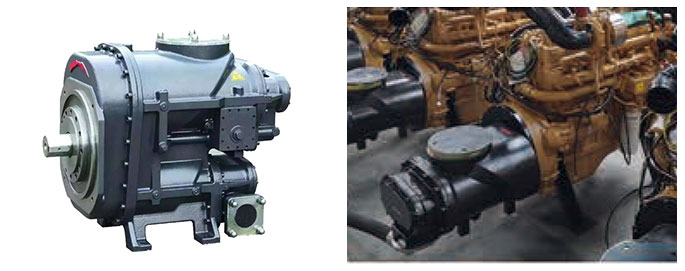

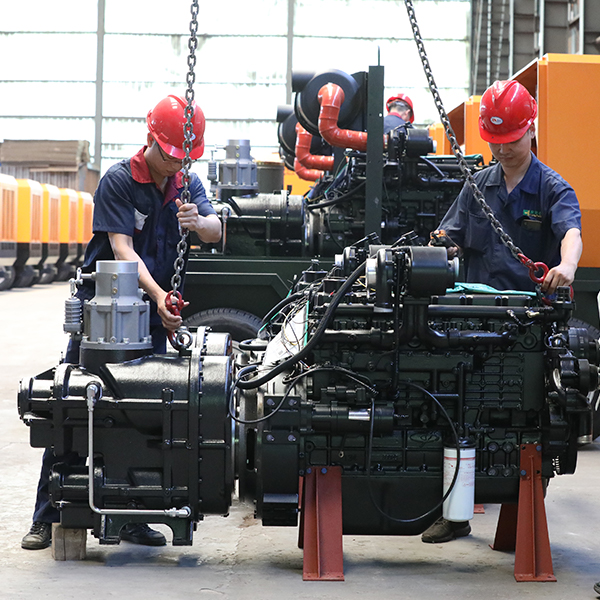

Core components

＞Diesel-moving air compressor special host Reliable and stable, with high efficiency

＞Covering single-stage compression,two-stage compression, low pressure, medium voltage, high pressure, Meet the needs of various working conditions.

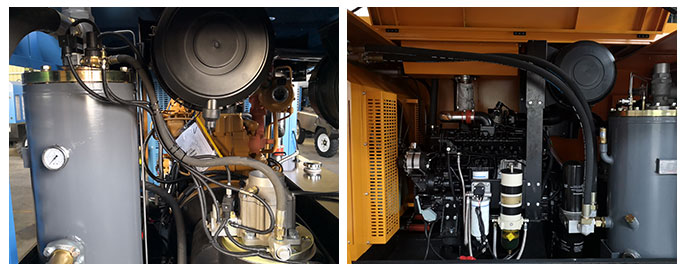

Quality parts

＞Choose domestic and foreign-line manufacturers parts, reliable quality.

＞Fuel oil system is equipped with oil and water separator to solve the problem of fuel oil and oil products.

＞Patent double pressure system, high and low pressure one-key switch, flexible adjustment of pressure, gas volume.

High-strength chassis, and housing

＞High strength chassis, overall molding, adapt to the field bumpy road conditions.

＞The overall dustproof and waterproof design should deal with the harsh open air environment.

＞Fully open doors, reserved full maintenance space.

Technical parameters

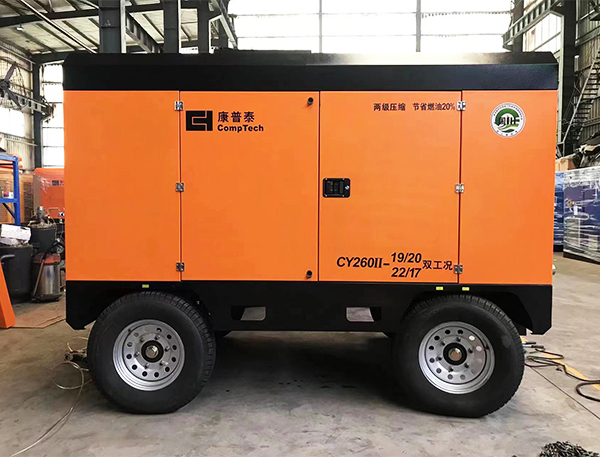

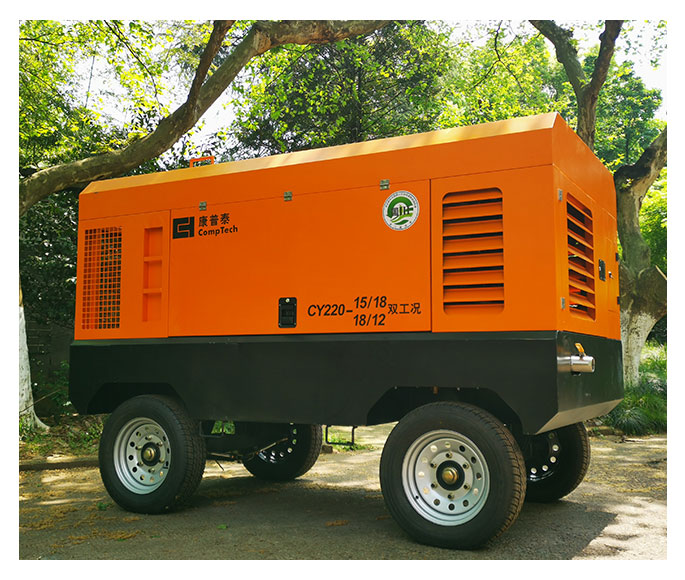

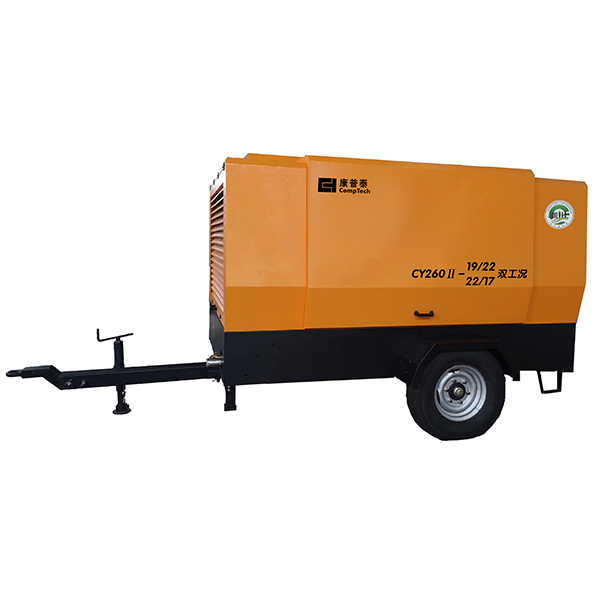

Product model		CY190 - 16/13(18/10)	CYl 90 II - 15/ 17( 18/ 14)	CY220- 15/ 18 (18/12)	CY220 Ⅱ- 17/17(20/ 14)	CY260 Ⅱ- 19/ 20 (22/17)
Air compressor	Compressed series	single stage compression	two stage compression	single stage compression	two stage compression	two stage compression
	discharge rate ( m3 /min)	operating modeⅠ 16	operating modeⅠ 15	operating modeⅠ 15	operating modeⅠ 17	operating modeⅠ 19
	discharge rate ( m3 /min)	operating modeⅡ 18	operating modeⅡ 18	operating modeⅡ 18	operating modeⅡ 20	operating modeⅡ 22
	discharge pressure( MPa )	operating modeⅠ 1.3	operating modeⅠ 1.7	operating modeⅠ 1.8	operating modeI 1.7	operating modeI 2.0
	discharge pressure( MPa )	operating modeⅡ 1.0	operating modeⅡ 1.4	operating modeⅡ 1.2	operating modeII 1.4	operating modeII 1.7
	Lubricating oil quantity ( L)	60	60	60	60	75
	Oil bucket volume( L)	80	80	80	80	115
	outlet size	G1 " G2"	G1 " G2"	G1 " G2"	G1 " G2"	G1 " G2"
	Battery specifications	2*6-QW-125	2*6-QW-125	2*6-QW-135	2*6-QW-135	2*6-QW-165
	running system	four wheels	four wheels	four wheels	four wheels	two wheels	four wheels
	Length(mm)	3000	3000	3000	3000	3000	2920
	Width(mm)	1600	1600	1600	1600	2350	1780
	Height(mm)	2280	2280	2280	2280	2290	2622
	weight(kg)	2700	2850	2800	2950	3800	4000
Crude oil engine	manufacturers	YUCHAI MACHINERY	YUCHAI MACHINERY	YUCHAI MACHINERY	YUCHAI MACHINERY	YUCHAI MACHINERY
	power rating(kW)	140	140	162	162	191
	rated speed(rpm)	2200	2200	2200	2200	2200
	unloaded speed(rpm)	1400	1400	1400	1400	1400
	Lubricating oil quantity(L)	16	16	16	16	20
	Oil bucket volume( L)	40	40	45	45	60
	Fuel tank volume( L)	180	180	180	180	280

Diesel Portable Screw Air Compressor

RELATED PRODUCTS

Image	Product Name	Product Categories	Quantity

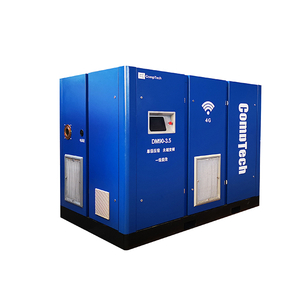

	DM series low-pressure screw air compressor	Air Compressor

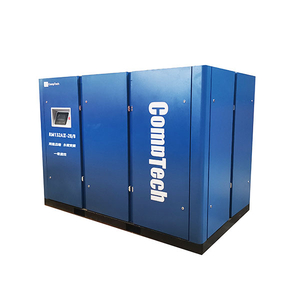

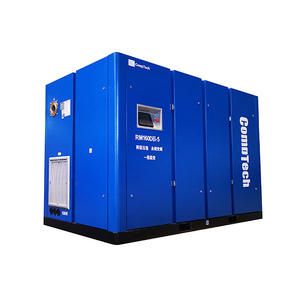

	RM series low pressure screw air compressor	Air Compressor
