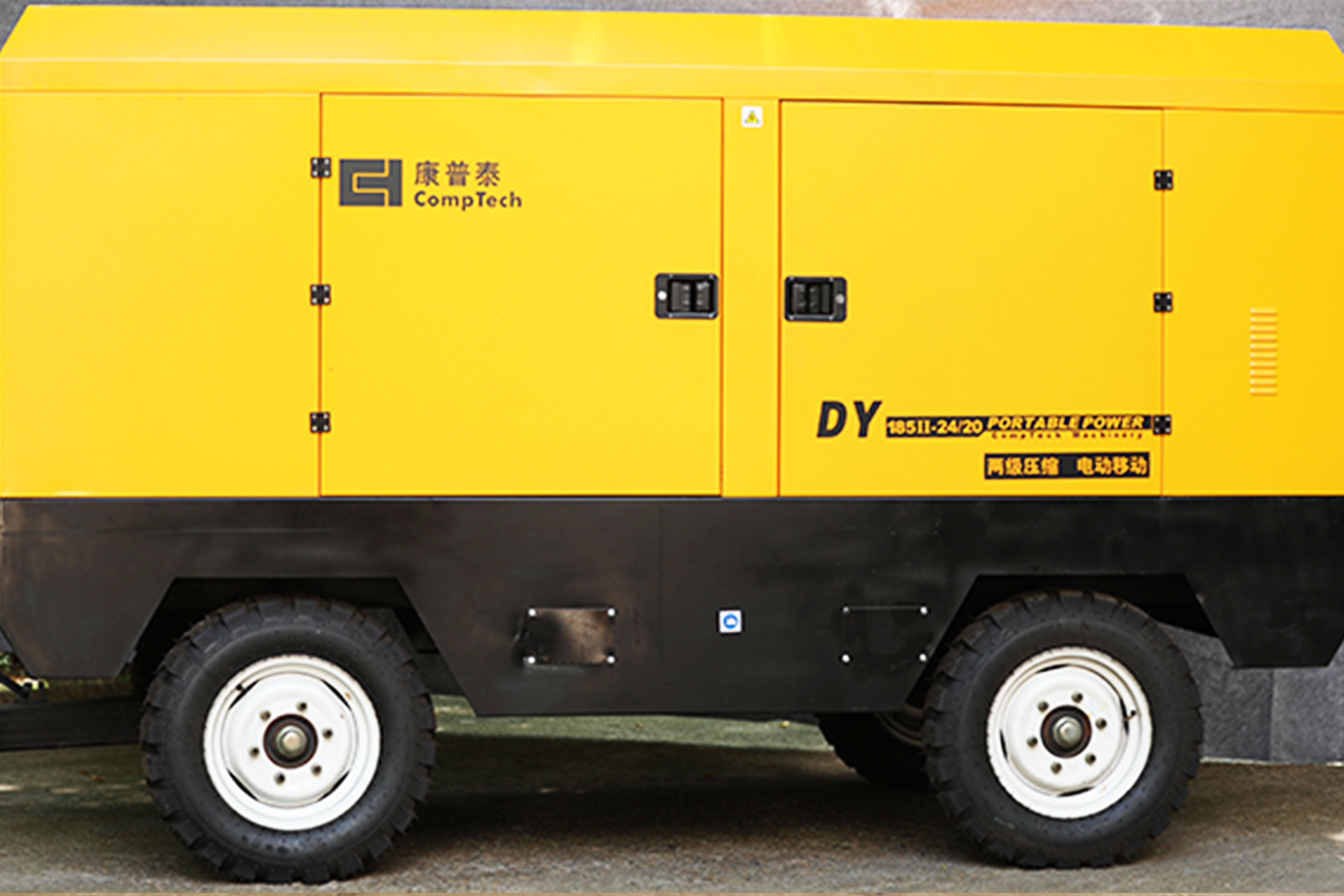

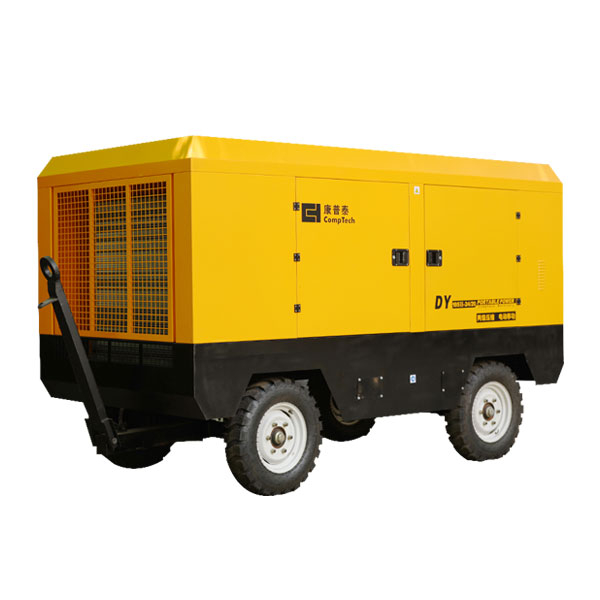

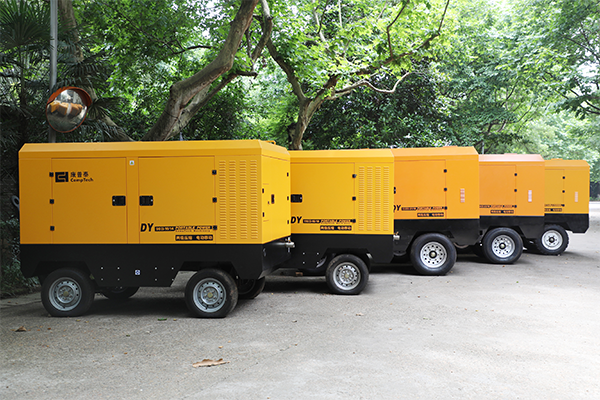

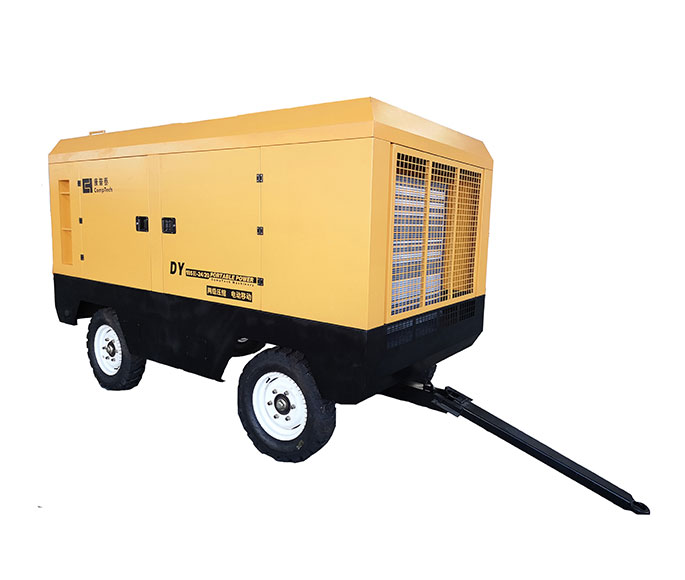

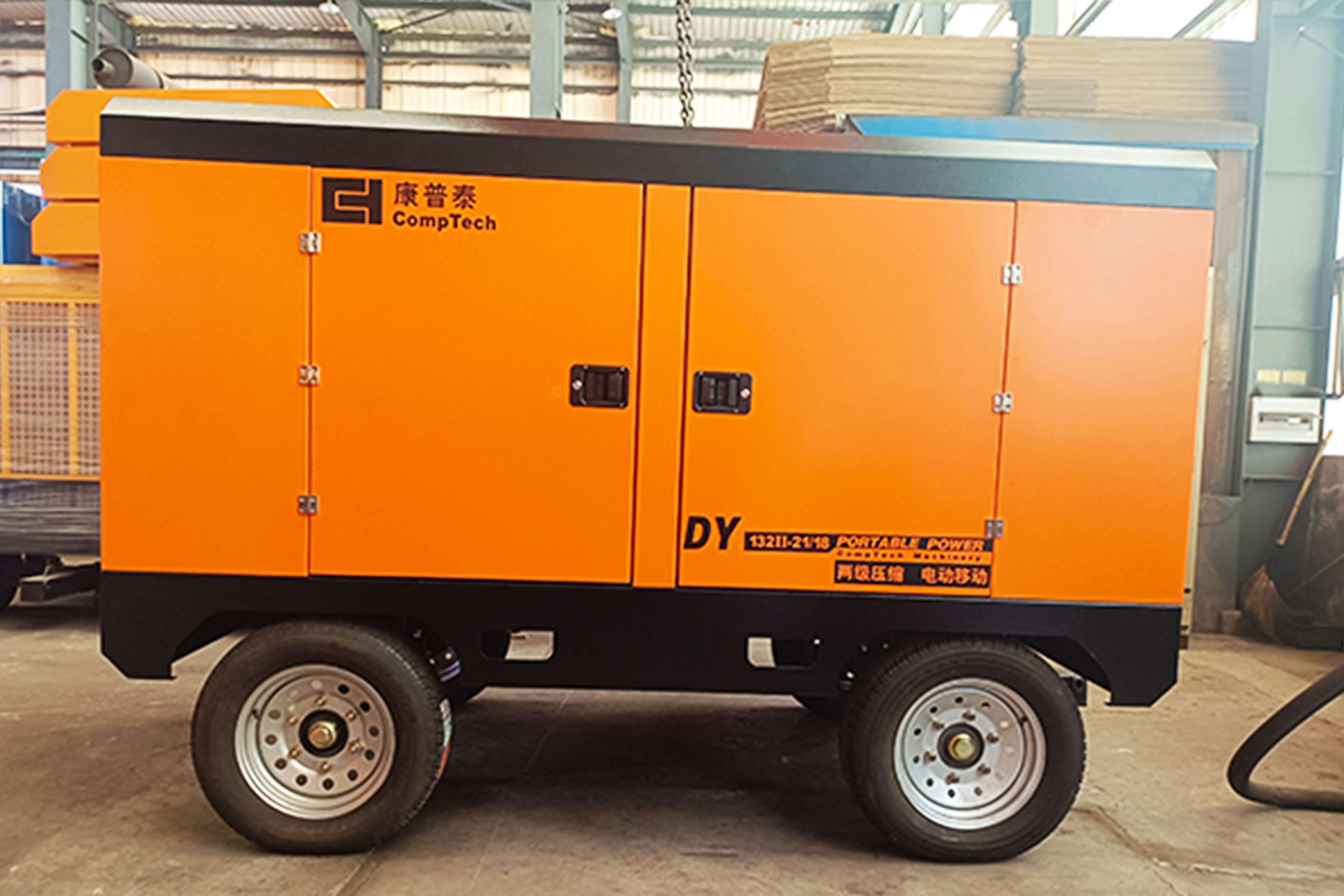

Air Compressor
Availability: | |
---|---|

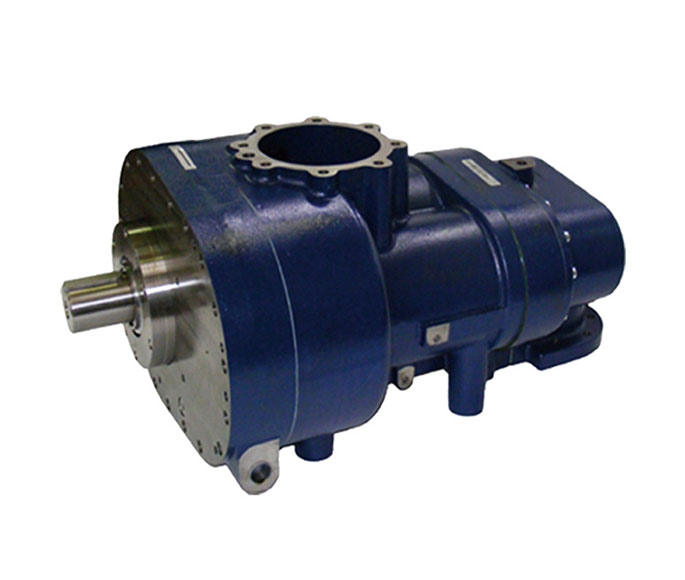

Core components
>Electric air compressor special main engine, reliable and stable, high efficiency.
>Covering single-stage compression,two-stage compression, low pressure, medium voltage, high pressure, Meet the needs of various working conditions.
>The two-stage compressor model adopts a large nose, with low speed and high efficiency.

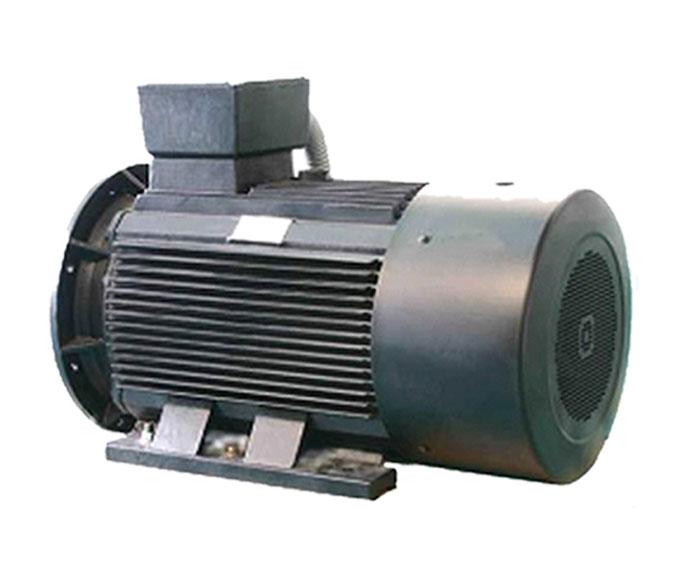

High efficiency motor
>Standard YE3 efficient motor, high starting torque and low starting current.
>The two-stage compressor is quadrupole motor with low speed and low voltage starting performance.
>Protection grade IP55, class F insulation, suitable for 24 hours of continuous work.
>>Sufficient reserve power, longer life, more stable operation.

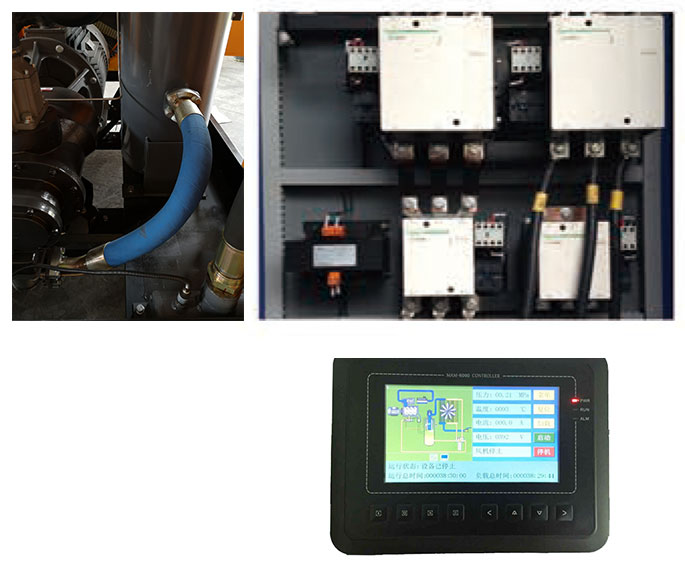

>Choose domestic and foreign-line manufacturers parts, reliable quality.
>The electrical system adopts rainproof and wide voltage design to overcome the problems such as low voltage and voltage instability in the field.
>LCD touch screen, display information is perfect, simple operation and easy to use.
>The pipeline adopts high temperature resistant and high pressure pipe, with long life and beautiful appearance.
High-strength chassis, and housing
>High strength chassis, overall molding, adapt to the field bumpy road conditions.
>The overall dustproof and waterproof design should deal with the harsh open air environment.

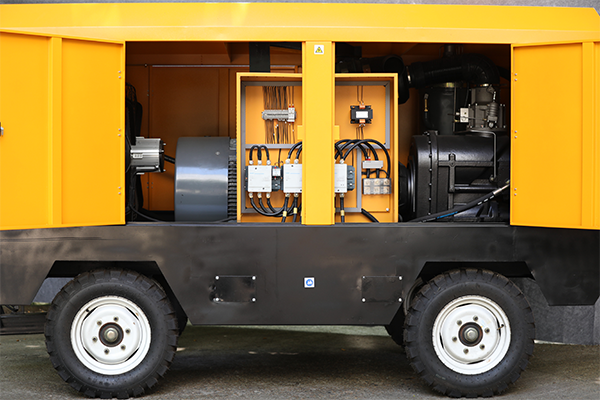

>Fully open doors, reserved full maintenance space.
Technical parameters
| power ( kW) | discharge rate ( m3 /min) / discharge pressure( MPa ) | Compressed series | outlet size | weight(kg) | Length×Width×Height (mm) |
DY75-8 | 75 | 13.0/0.8 | single stage compression | Gl " G2" | 2000 | 2550*1400*1910 |
DY75-13 | 75 | 10.0/1.3 | single stage compression | Gl " G2" | 2000 | 2550*1400*1910 |
DY90-8 | 90 | 16.0/0.8 | single stage compression | Gl " G2" | 2200 | 2550*1400*1910 |
DY90-14 | 90 | 13.0/1.4 | single stage compression | Gl " G2" | 2200 | 2550*1400*1910 |
DY110-12 | 110 | 16.0/1.2 | single stage compression | Gl " G2" | 2300 | 3100*1700*2200 |
DY110-18 | 110 | 12.0/1.8 | single stage compression | Gl " G2" | 2800 | 3100*1700*2200 |
DY110-8 | 110 | 20.0/0.8 | single stage compression | Gl " G2" | 2800 | 3100*1700*2200 |
DY132-8 | 132 | 24.0/0.8 | single stage compression | Gl " G2" | 3000 | 3100*1700*2200 |
DY132-13 | 132 | 20.0/1.3 | single stage compression | Gl " G2"" | 3000 | 3100*1700*2200 |
DY132-14 | 132 | 16.0/1.4 | single stage compression | Gl " G2" | 3000 | 3100*1700*2200 |
DY132-18 | 132 | 15.0/1.8 | single stage compression | Gl " G2" | 3000 | 3100*1700*2200 |
DY185-14 | 185 | 24.0/1.4 | single stage compression | Gl " G2" | 4200 | 3000*1680*2140 |
DY185-17 | 185 | 19.0/l.7 | single stage compression | Gl " G2" | 4200 | 3000*1680*2140 |
DY90Ⅱ-16/14 | 90 | 16.0/1.4 | two stage compression | Gl " G2" | 3400 | 3100*1700*2200 |
DY110Ⅱ-16/18 | 110 | 16.0/1.8 | two stage compression | Gl " G2" | 3400 | 3000*1680*2140 |
DY132Ⅱ-21/18 | 132 | 21.0/1.8 | two stage compression | Gl " G2" | 4500 | 3000*1680*2140 |
DY160Ⅱ-23/18 | 160 | 23.0/1.8 | two stage compression | Gl " G2" | 4500 | 3000*1680*2140 |
DY185Ⅱ-24/20 | 185 | 24.0/2.0 | two stage compression | Gl " G2" | 4500 | 3000*1680*2140 |
