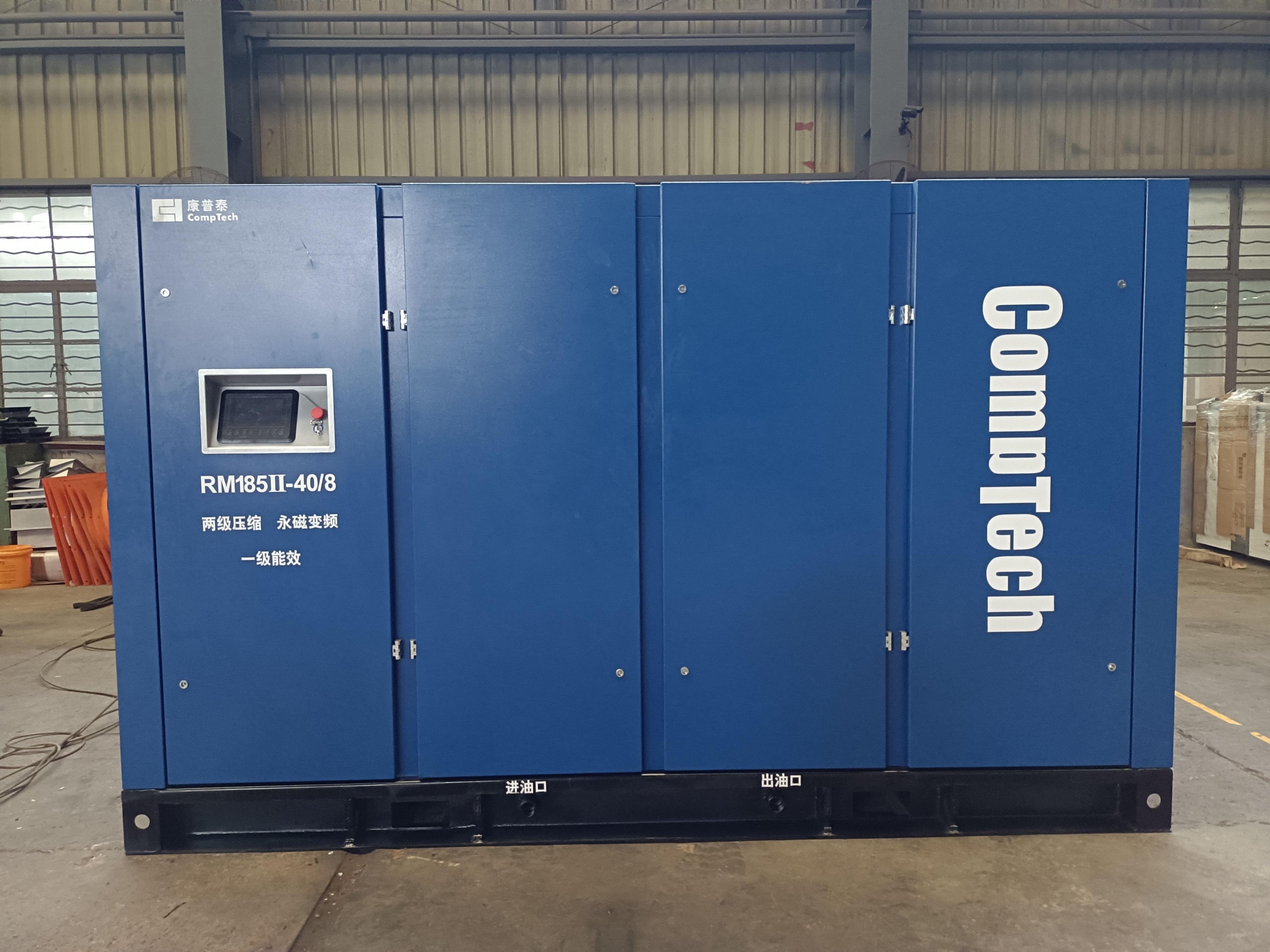

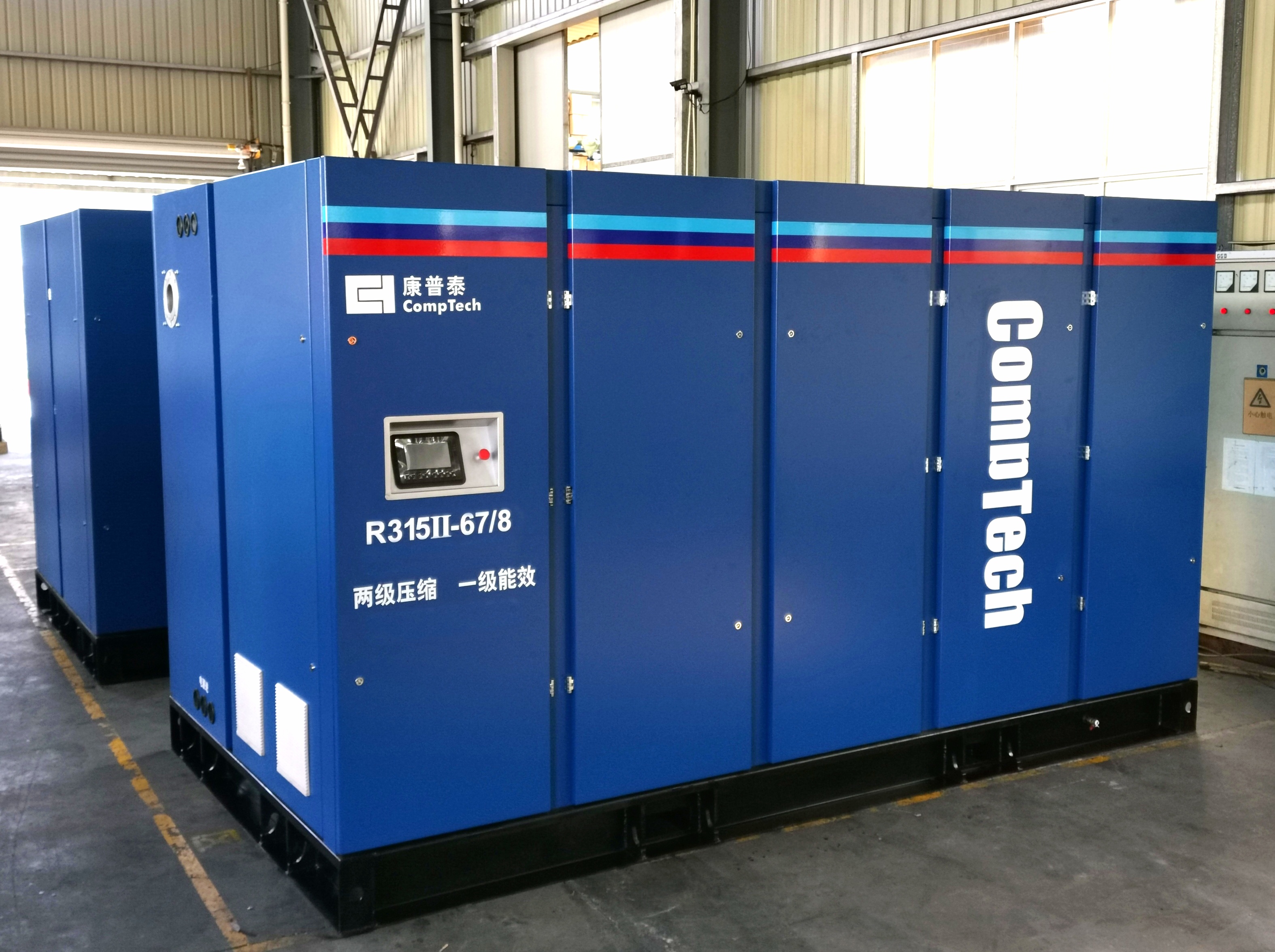

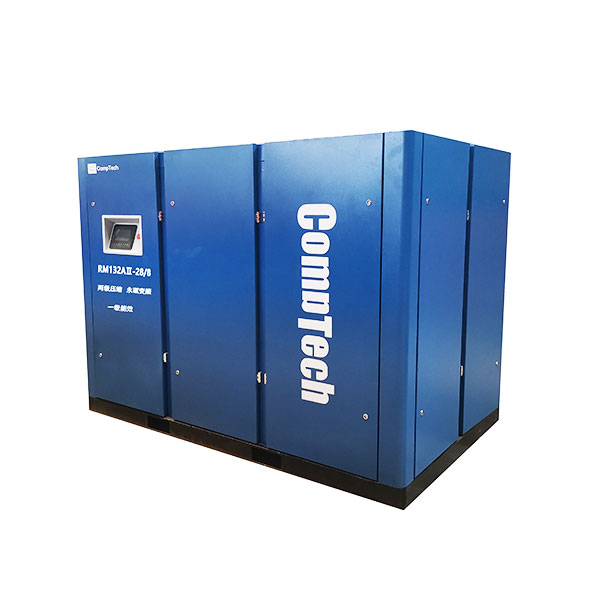

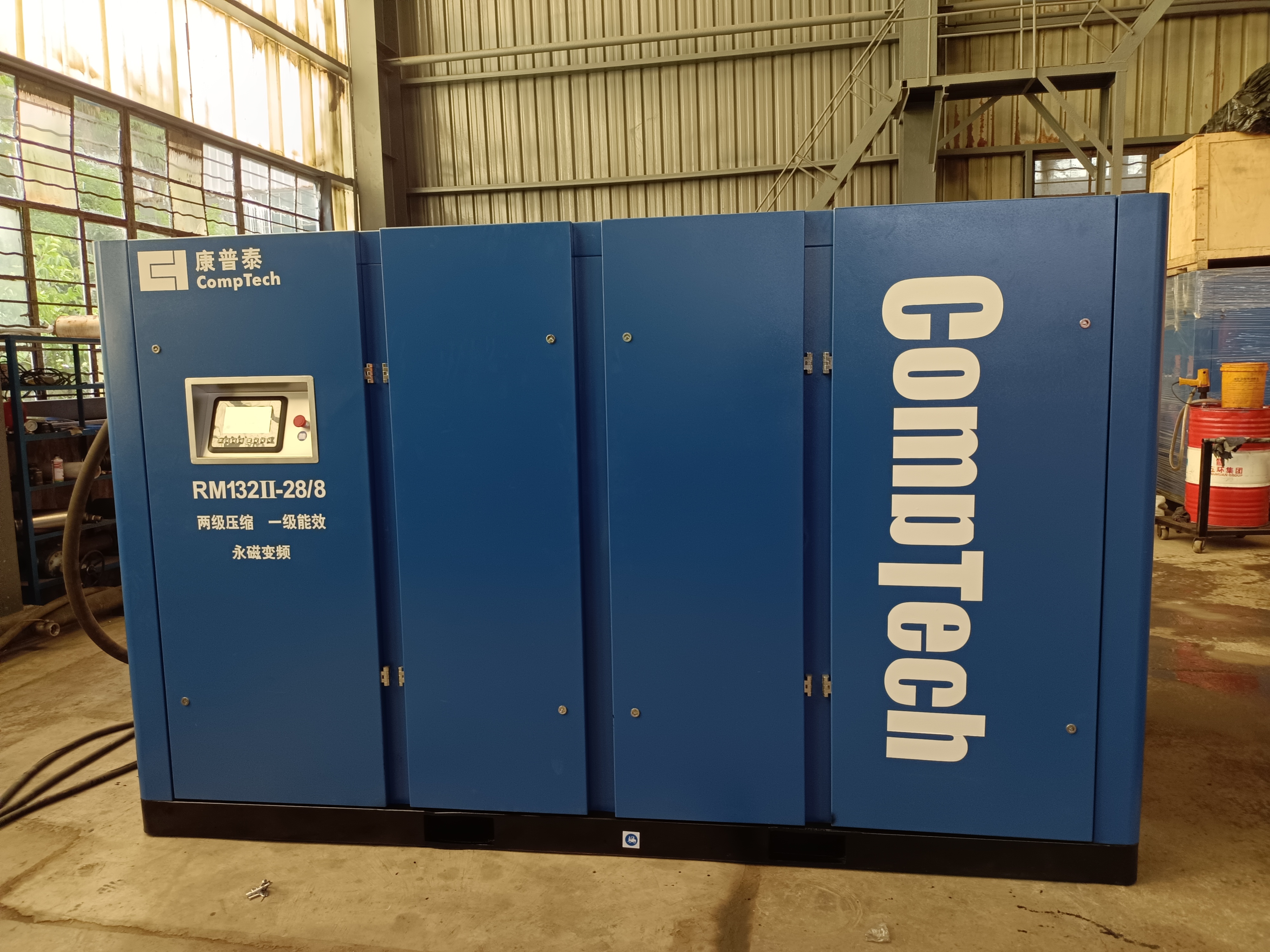

R series two-stage compression first-stage energy efficiency

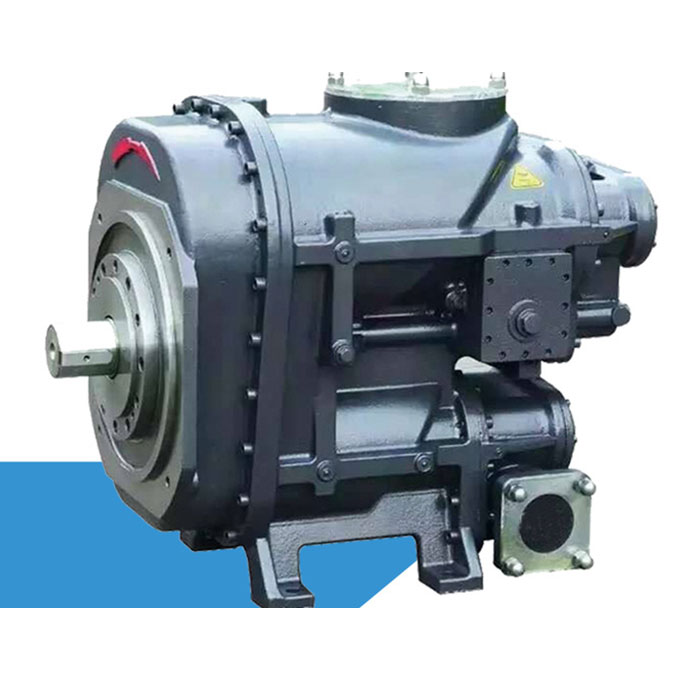

Excellent performance, derived from a strong and powerful heart

＞Large rotor, low speed design concept, king shaft speed 1480rpm, up and down independent compression unit, compact structure and rigid good.

＞Built-in gear transmission unit to achieve optimal line Speed and maximum volume efficiency.

＞All-import SKF, NSK, FAG, and NTN bearings.

＞Compared with the single-stage compression, the energy-saving rate reaches more than 15%.

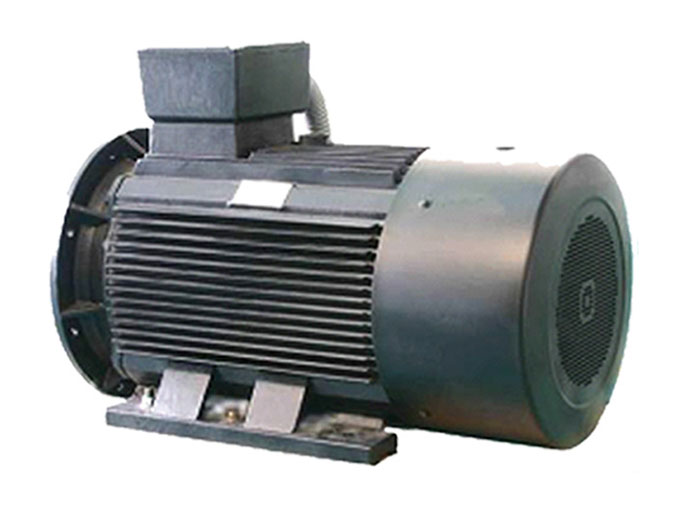

High-efficiency four-level electric motor

＞High efficiency quadrupole motor, very large starting torque, small starting current.

＞Protection grade IP55, class F insulation, suitable for 24 hours of continuous work.

＞Sufficient reserve power, longer life, more stable operation.

High-performance vector frequency converter

＞Using vector control technology, dynamic performance of Bodhi, accurately control the torque.

＞Easy to operate, system should be fast, wide range, good acceleration performance.

＞High reliability, perfect motor protection and frequency converter protection.

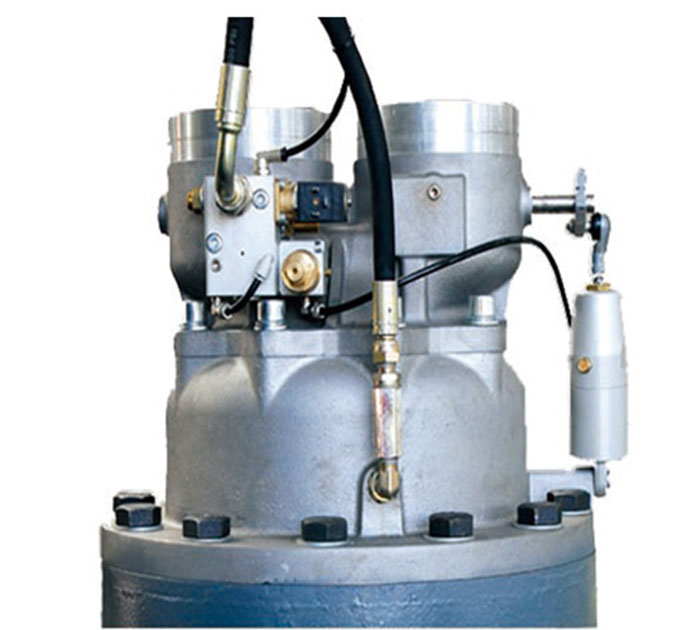

Highly integrated air intake valve

＞Large diameter design, fully reduce the suction pressure drop, improve the energy efficiency of the whole machine.

＞Integrated vent valve, solenoid valve and proportional valve to achieve precise control of air intake.

＞Trace intake and patent check design ensure the stability of startup and shutdown process of air compressor.

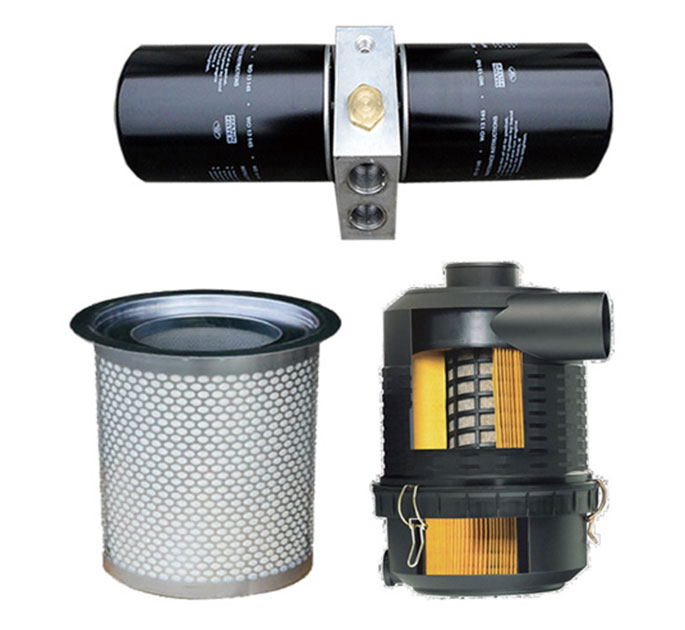

High precision filter

＞Air filter: small intake resistance, large dust capacity, a unique cyclone pre-separation.

＞Oil filter: high filtration accuracy, built-in bypass valve to ensure equipment safety in extreme cases.

＞Oil and gas separation core: large filtration area, long replacement cycle, oil content of compressed air is less than 2 PPM.
