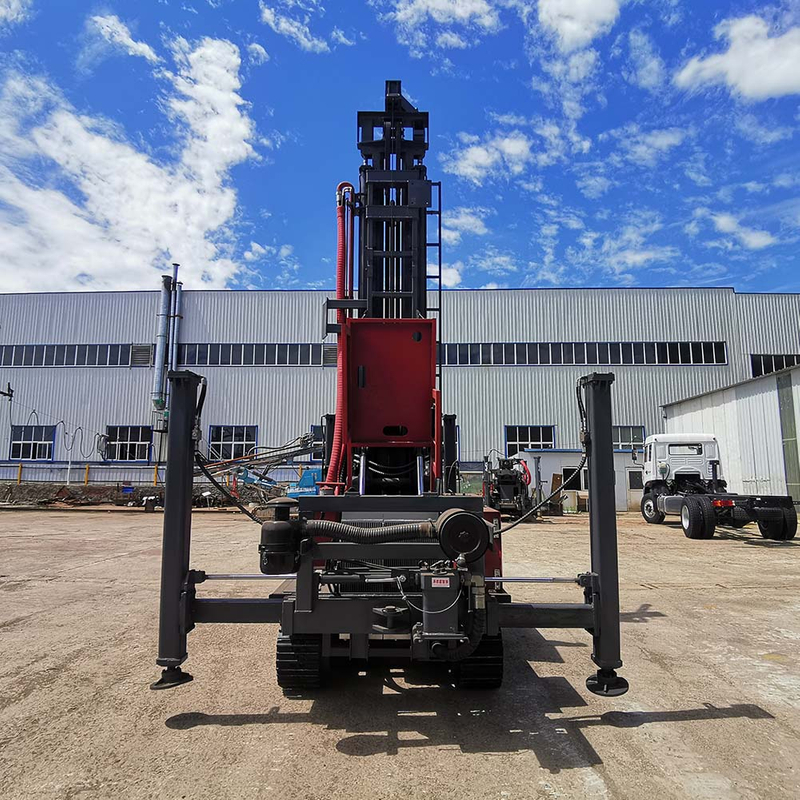

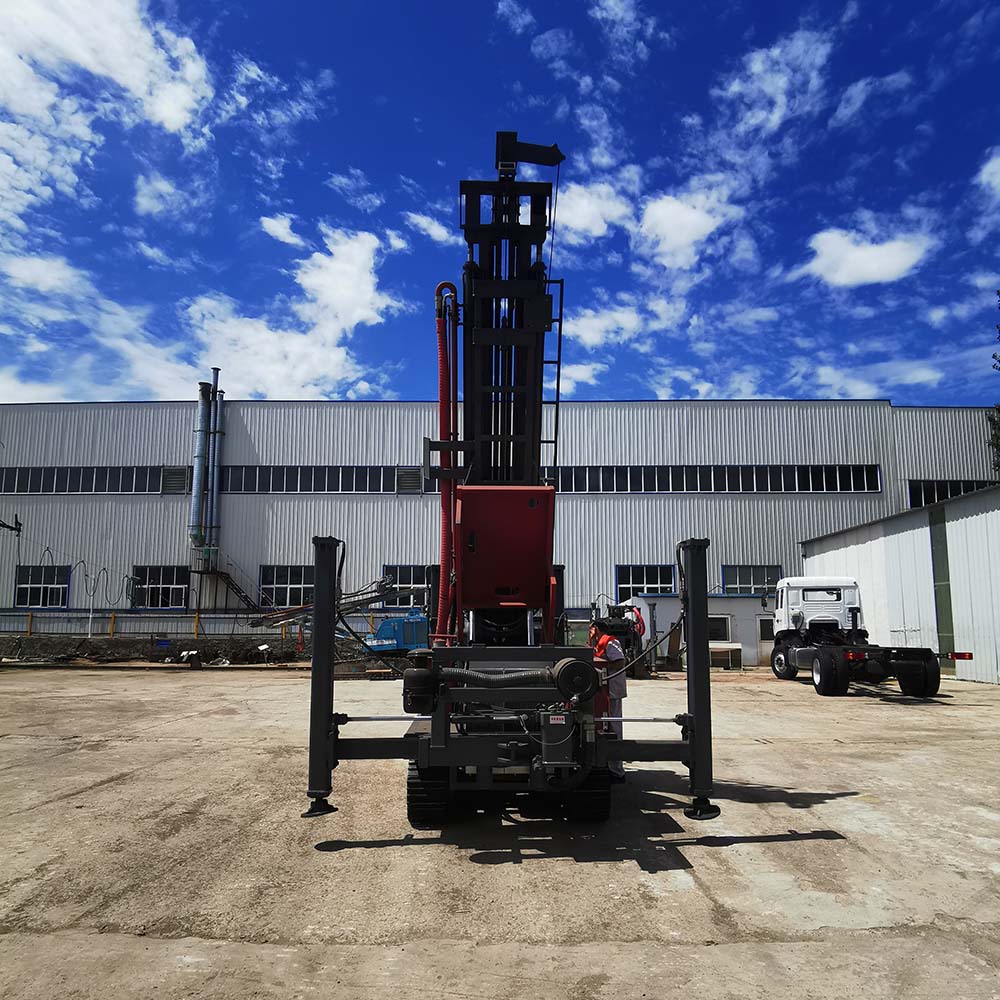

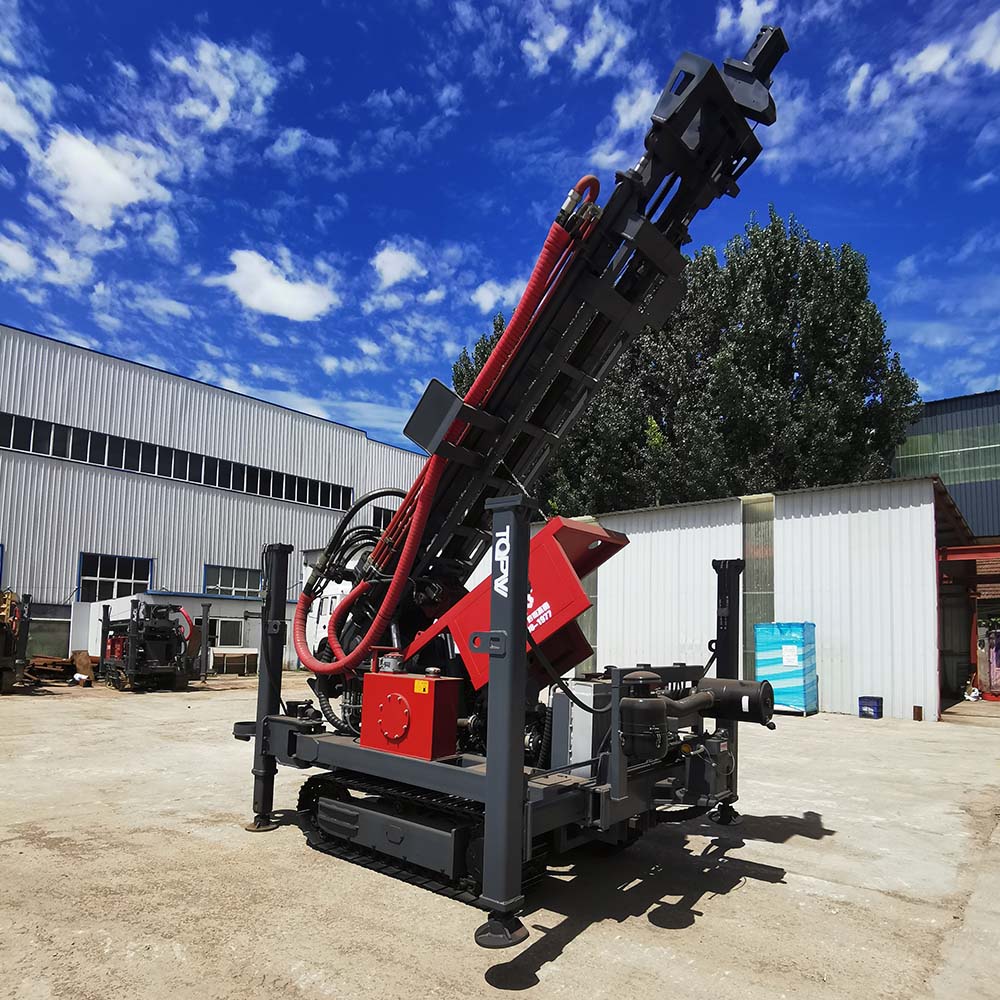

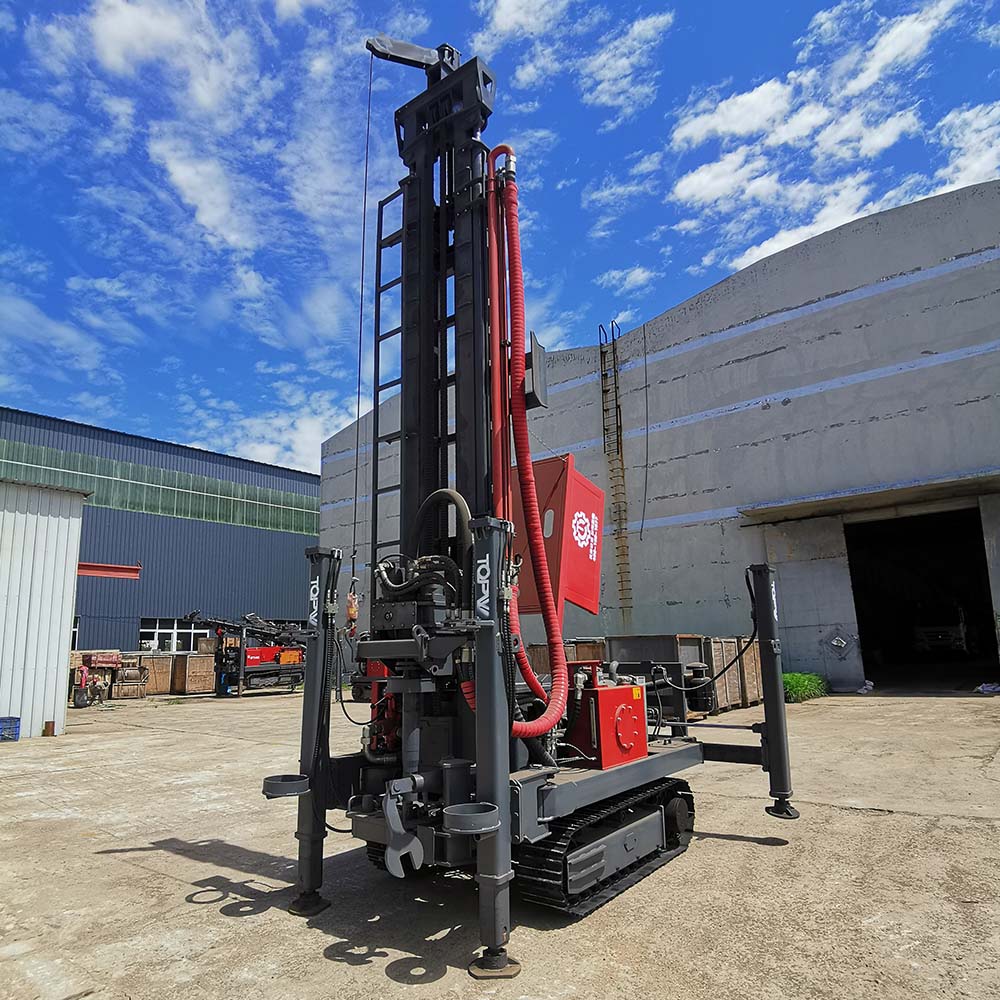

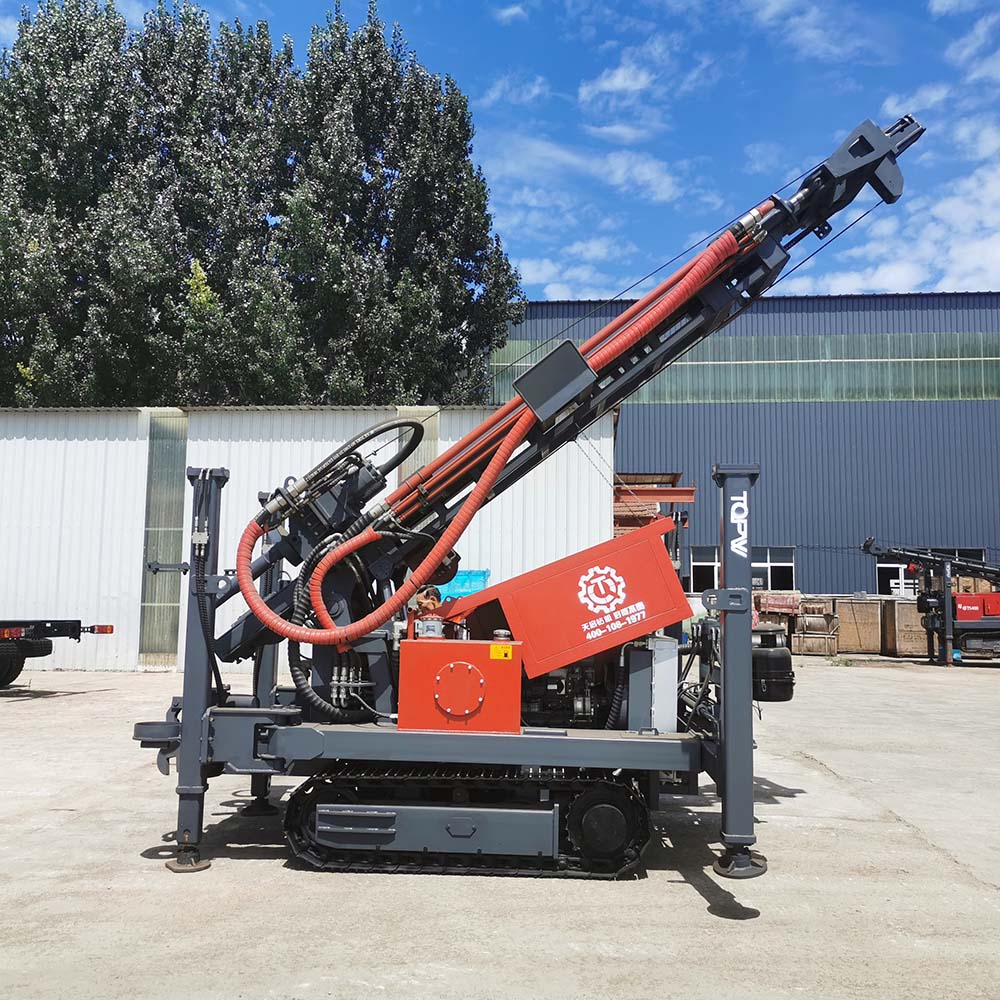

TS300BS 6 Drilling Rig

Model

Units

TS300

Drilling capacity

Max drilling depth

m

300

Max drilling diameter

mm

Φ305

Engine

Engine brand

/

Yunnei

Rated power

Kw

75

Feed system

Lifting force

T

14

Speed of fast lifting

m/min

30

Feeding force

T

5.5

Speed of fast putting down

m/min

55

Max feeding stroke

mm

6600

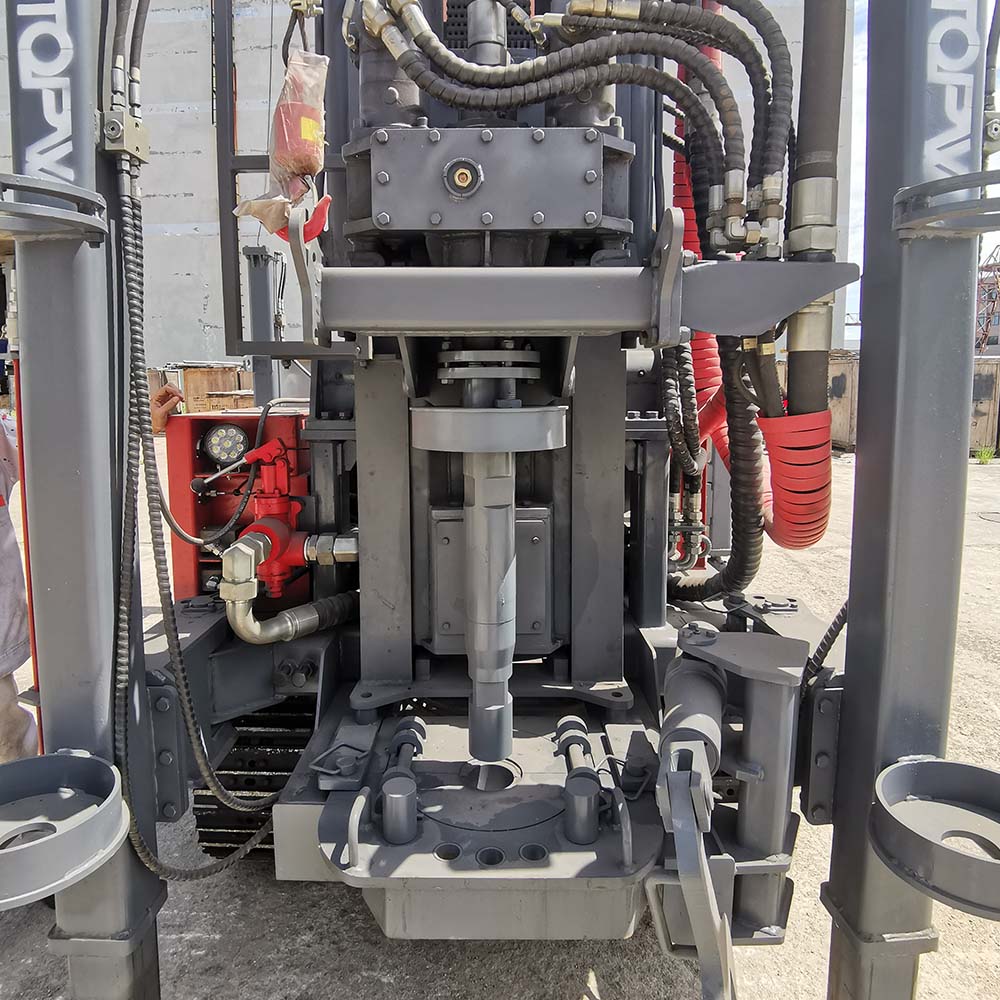

Rotation system

Rotary torque

Nm

6000/3000

Rotary speed

r/min

70/140

Travelling system

Travel speed

Km/h

2.5

Grade ability

°

21

Tool winch

Lifting force

T

1.1

Drilling rods diameter

/

mm

89/102

Transport dimension

Length×Width×Height

mm

5690×1700×2340

Work dimension

Length×Width×Height

mm

3750×2800×9350

Machine weight

/

T

7.2

Optional accessories

welding generator、Foam pump、Second winch etc
