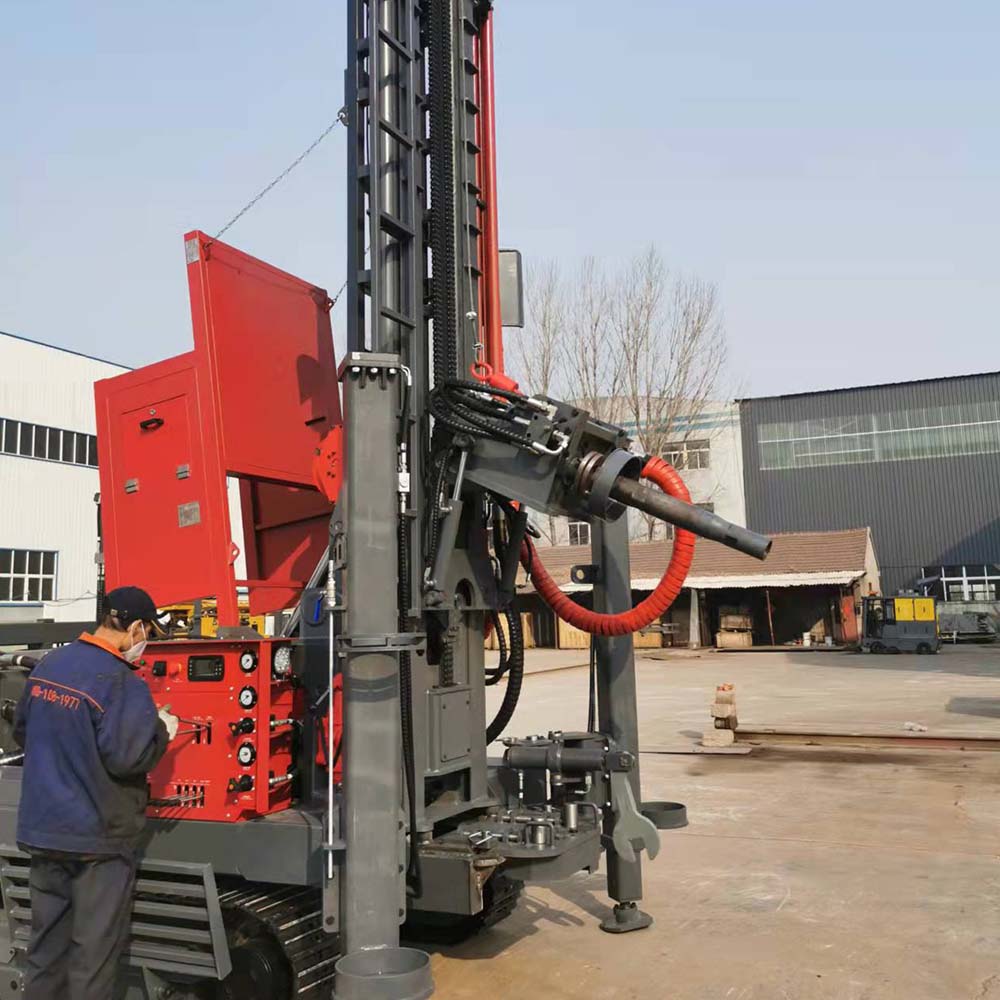

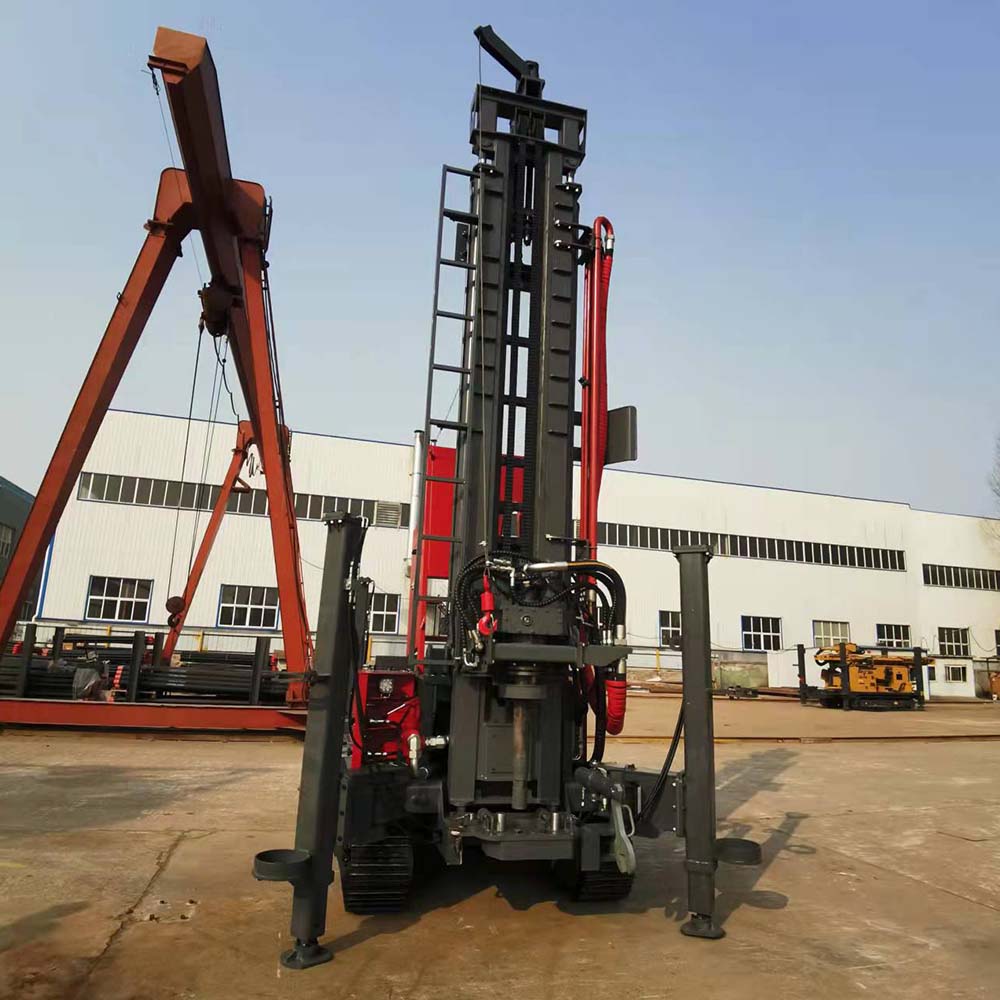

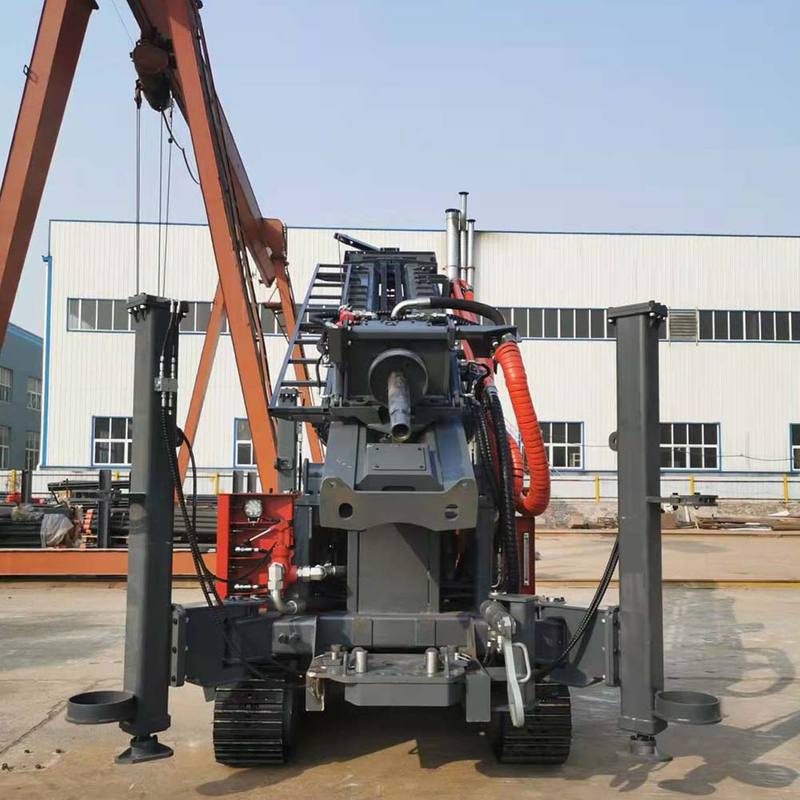

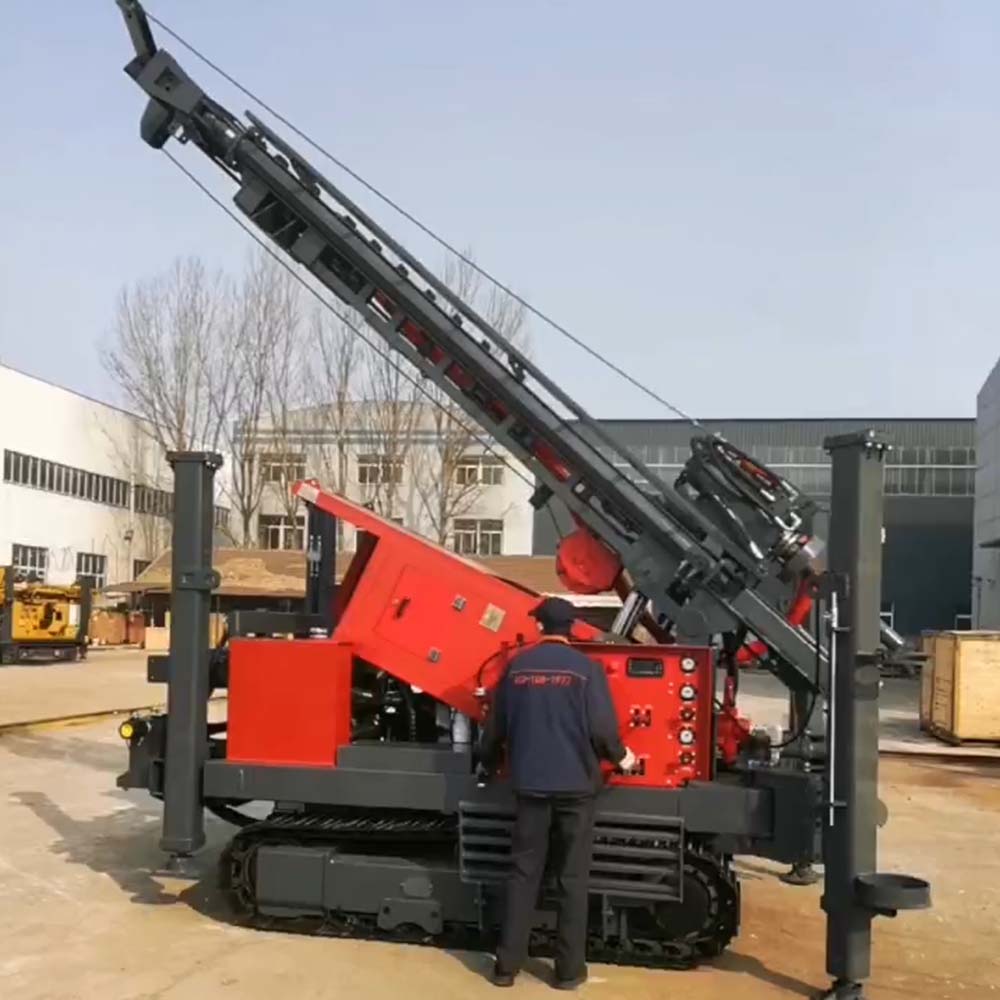

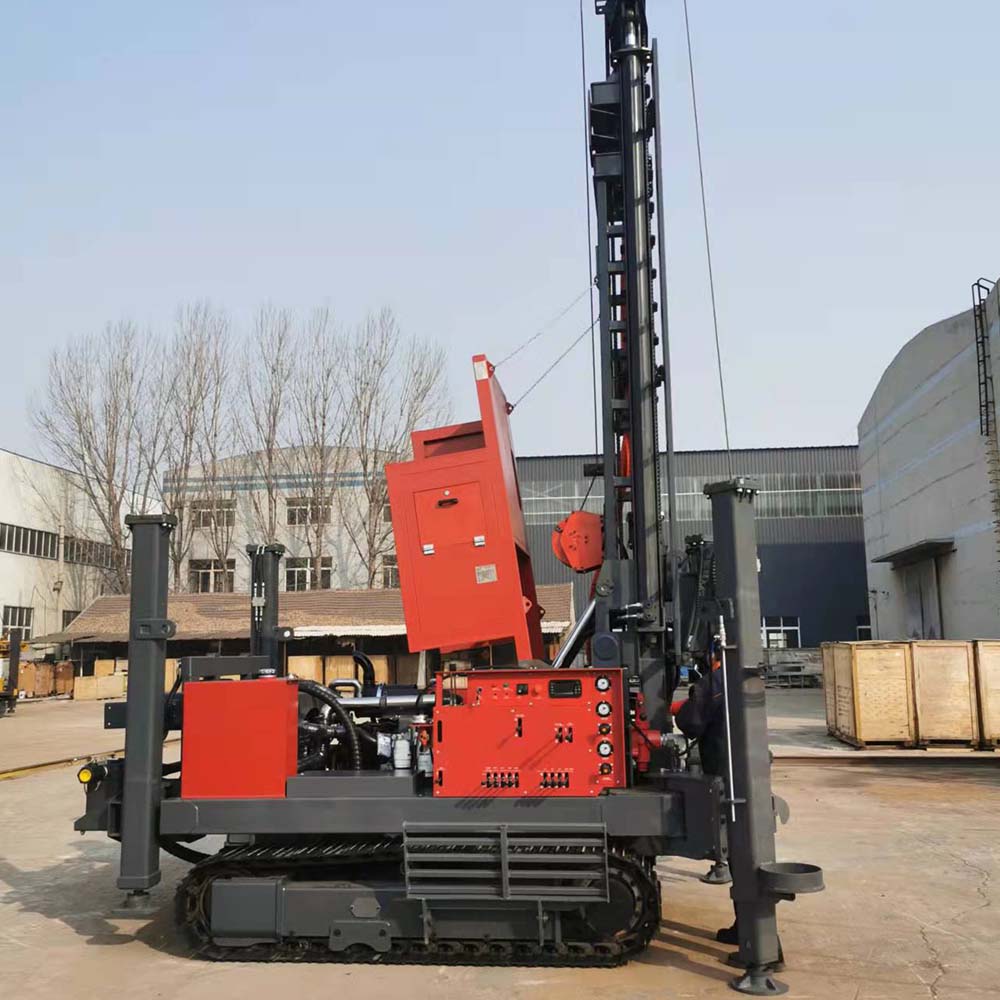

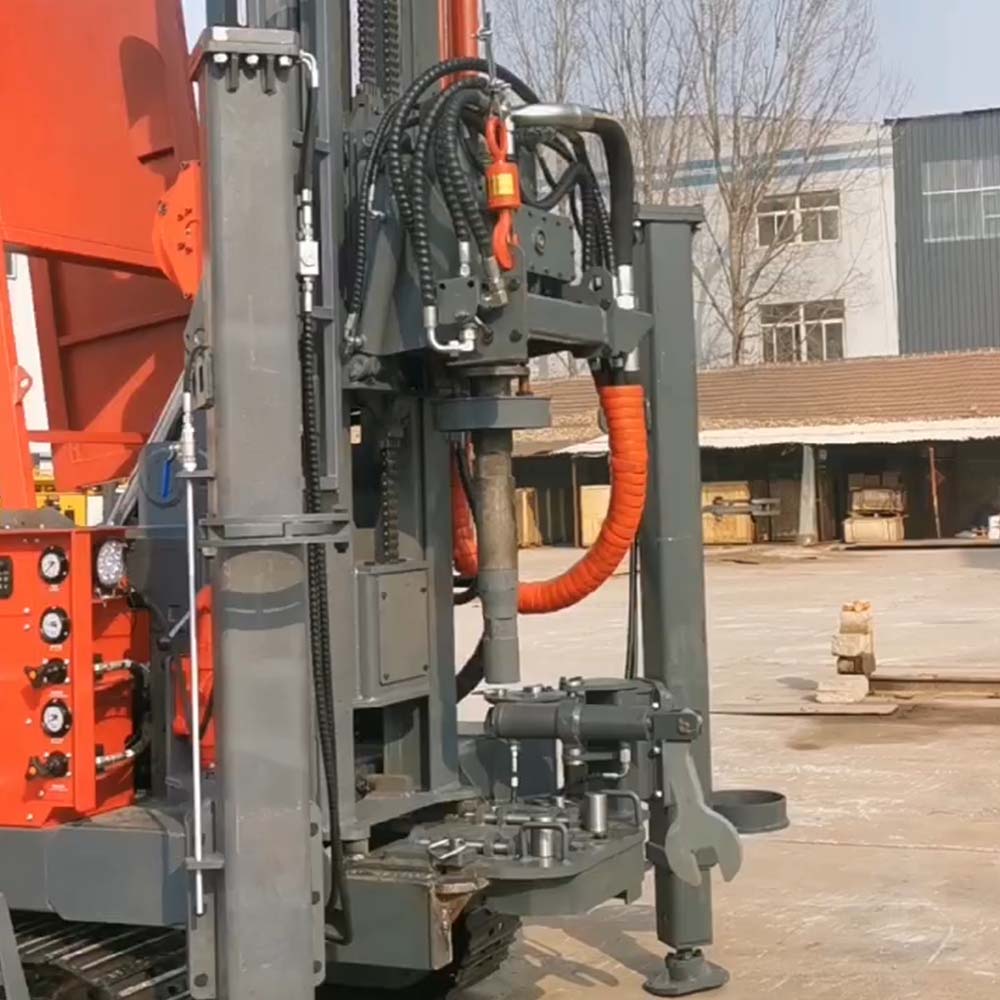

TS400S-6 Drilling Rig

Model

Units

TS400S-6

Drilling capacity

Max drilling depth

m

400

Max drilling diameter

mm

Φ350

Engine

Engine brand

/

Yuchai

Rated power

Kw

92

Feed system

Lifting force

KN

200

Speed of fast lifting

m/min

30

Feeding force

KN

80

Speed of fast putting down

m/min

60

Max feeding stroke

mm

6600

Rotation system

Rotary torque

Nm

8000/4000

Rotary speed

r/min

70/140

Travelling system

Travel speed

Km/h

2.5

Grade ability

°

21

Tool winch

Lifting force

KN

11

Drilling rods diameter

/

mm

89/102

Transport dimension

Length×Width×Height

mm

5760×1800×2440

Work dimension

Length×Width×Height

mm

3940×2890×9430

Machine weight

/

T

8.3

Optional accessories

welding generator、Foam pump、Second winch etc
