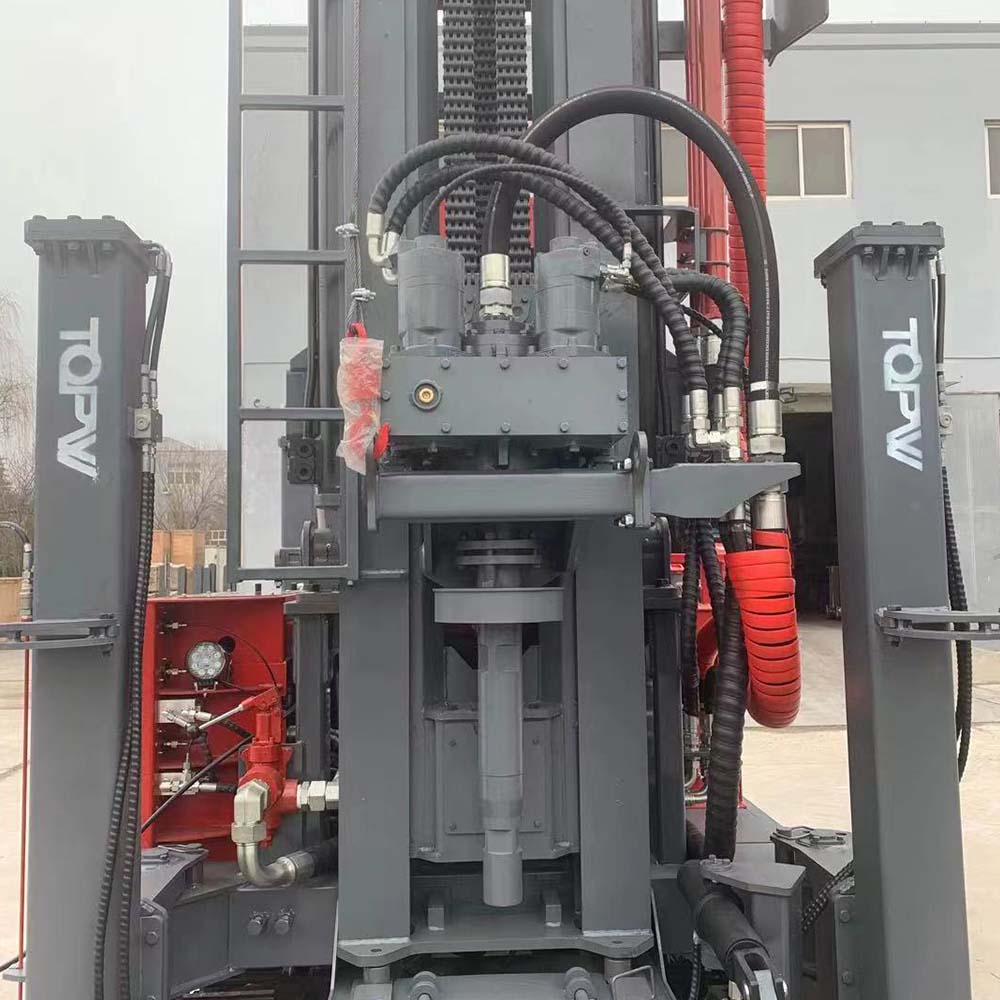

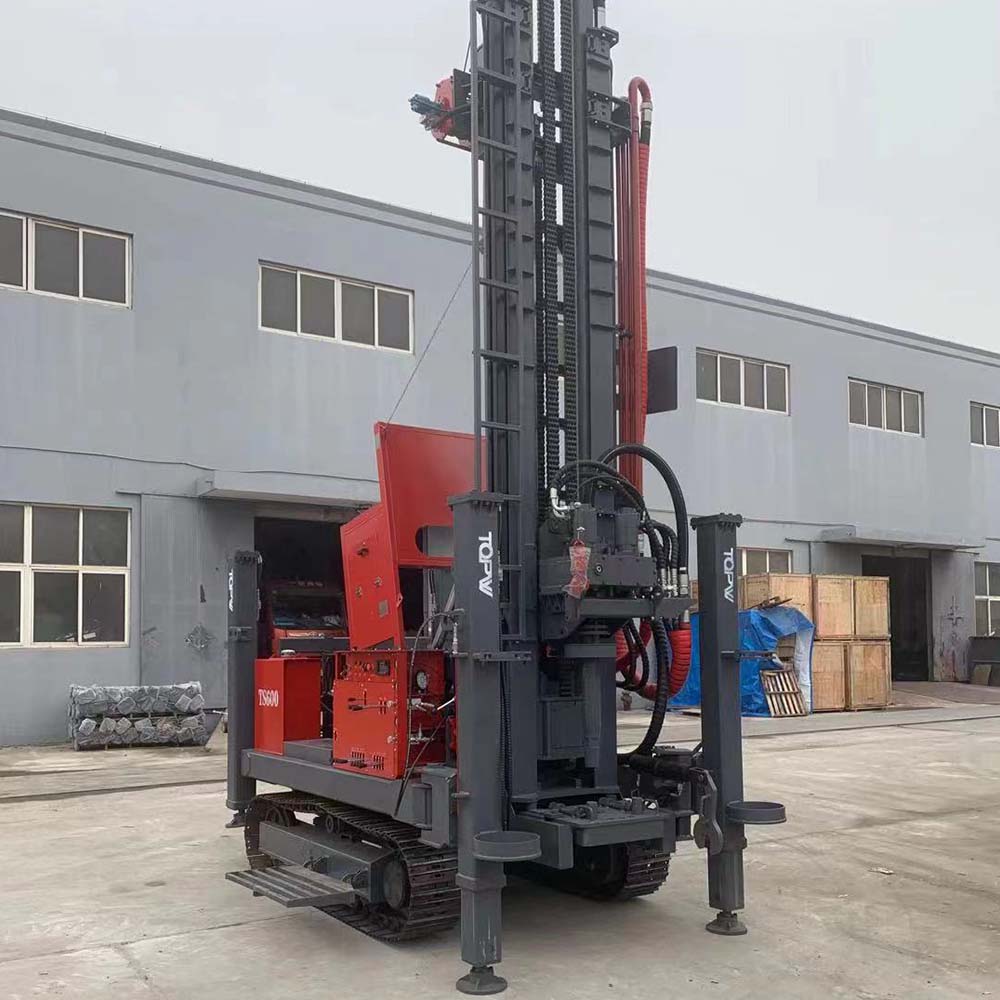

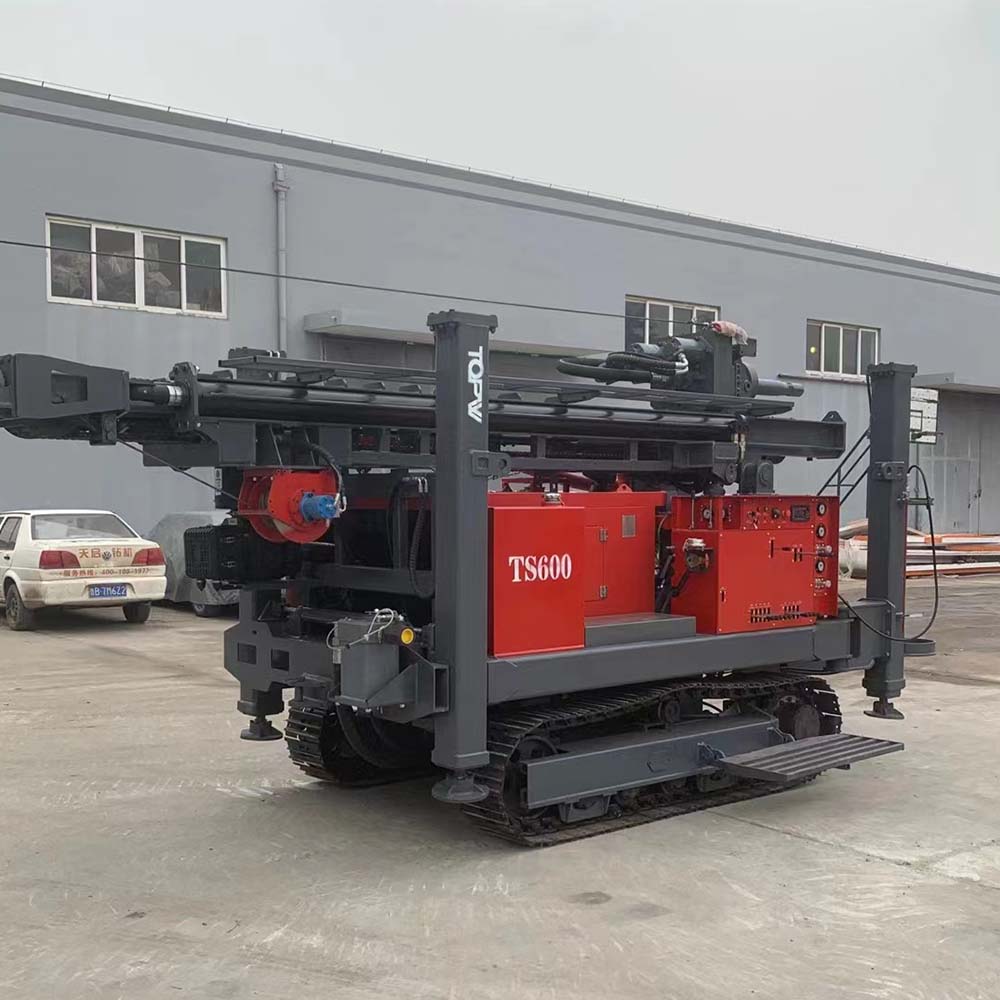

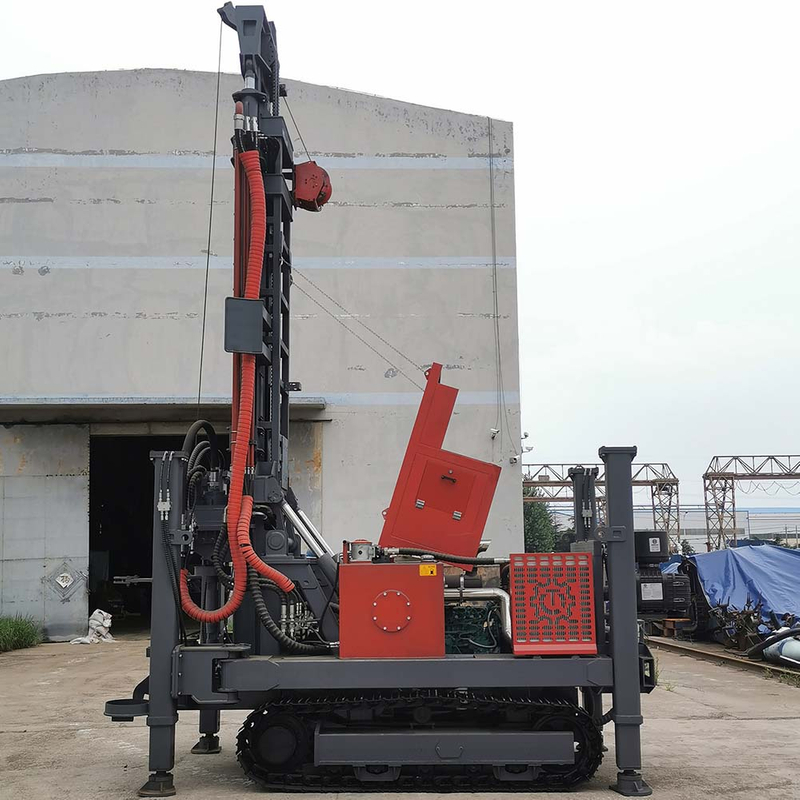

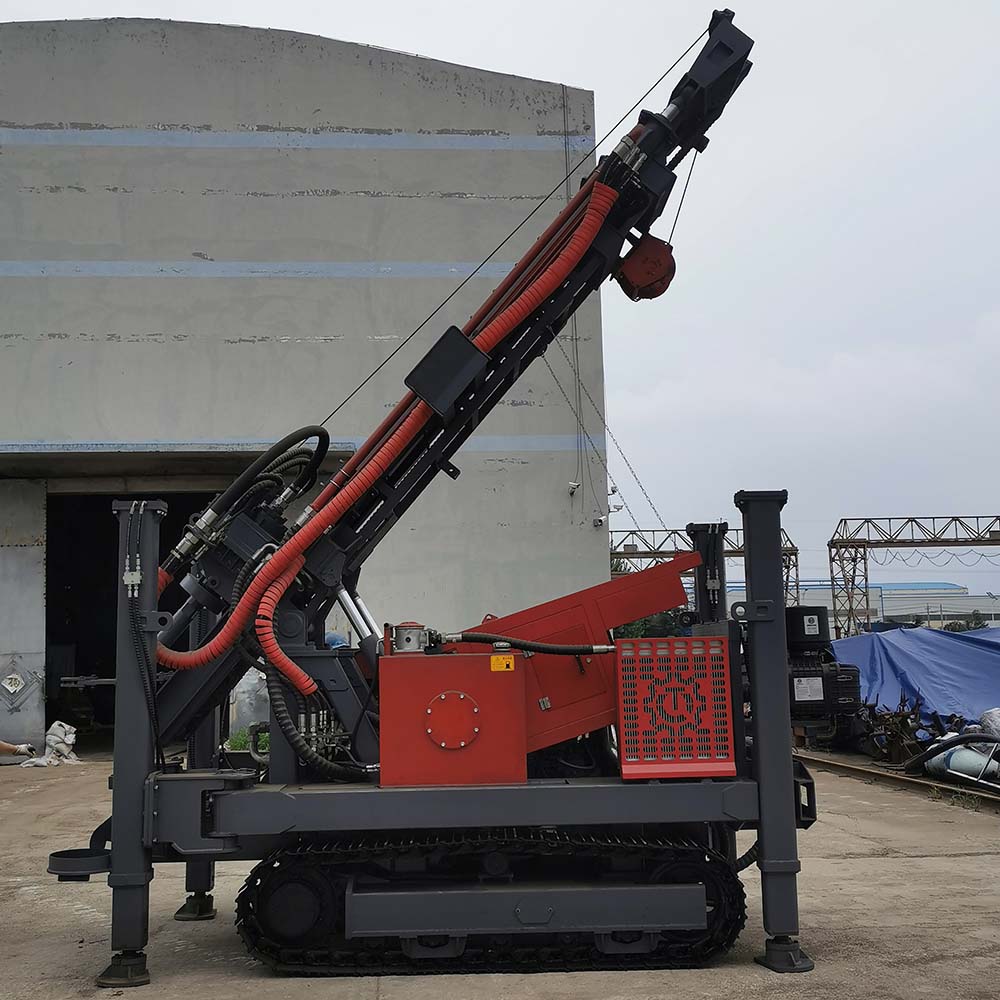

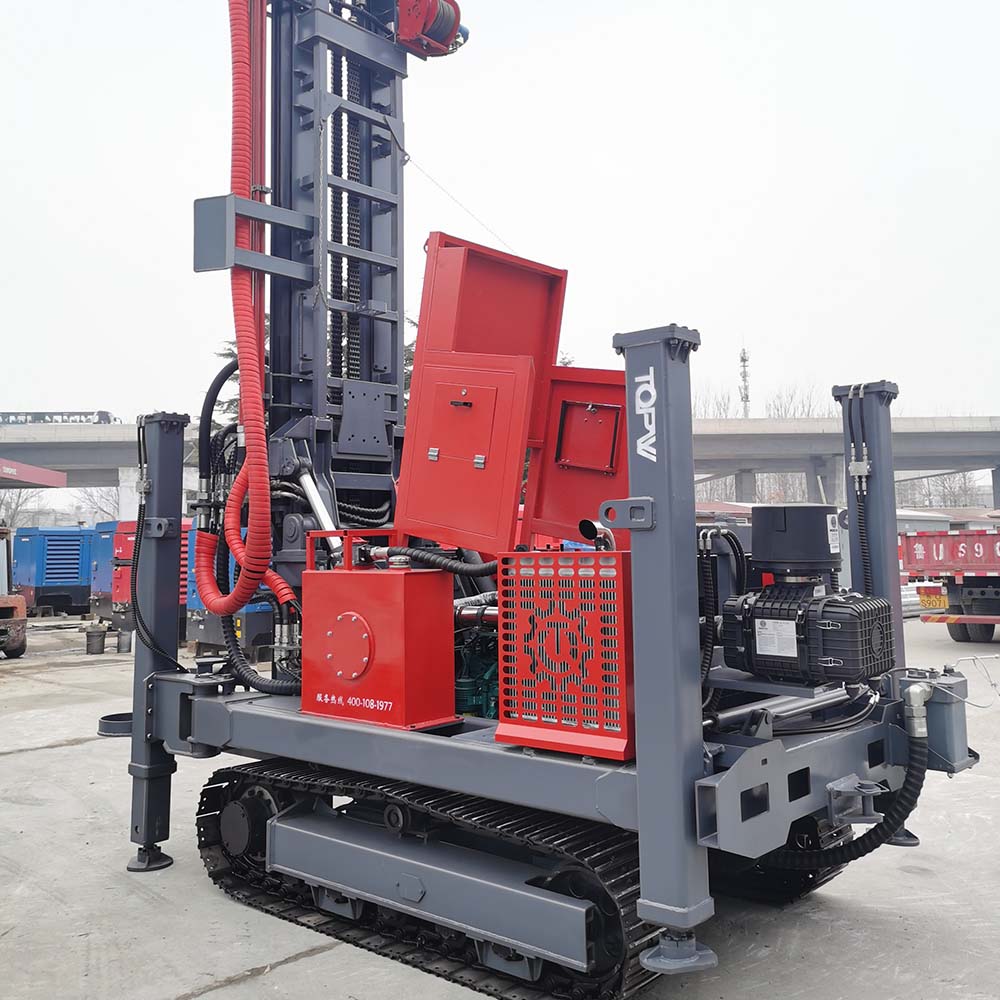

TS600S-6 Drilling Rig

Model

Units

TS600

Drilling capacity

Max drilling depth

m

600

       Max drilling diameter

mm

Φ450

Engine

Engine brand

/

Weichai

Rated power

Kw

140/6

Feed system

Lifting force

T

30

Speed of fast lifting

m/min

25

Feeding force

KN

10

Speed of fast putting down

m/min

46

Max feeding stroke

mm

6600

Rotation system

Rotary torque

Nm

11000/5500

Rotary speed

r/min

70/140

Travelling system

Travel speed

Km/h

2.5

Grade ability

°

21

Tool winch

Lifting force

KN

15

Drilling rods diameter

/

mm

114/102

Transport dimension

Length×Width×Height

mm

5800×1950×2660

Work dimension

Length×Width×Height

mm

4100×3100×9700

Machine weight

/

T

10.4

Optional accessories

welding generator、Foam pump、Second winch etc
