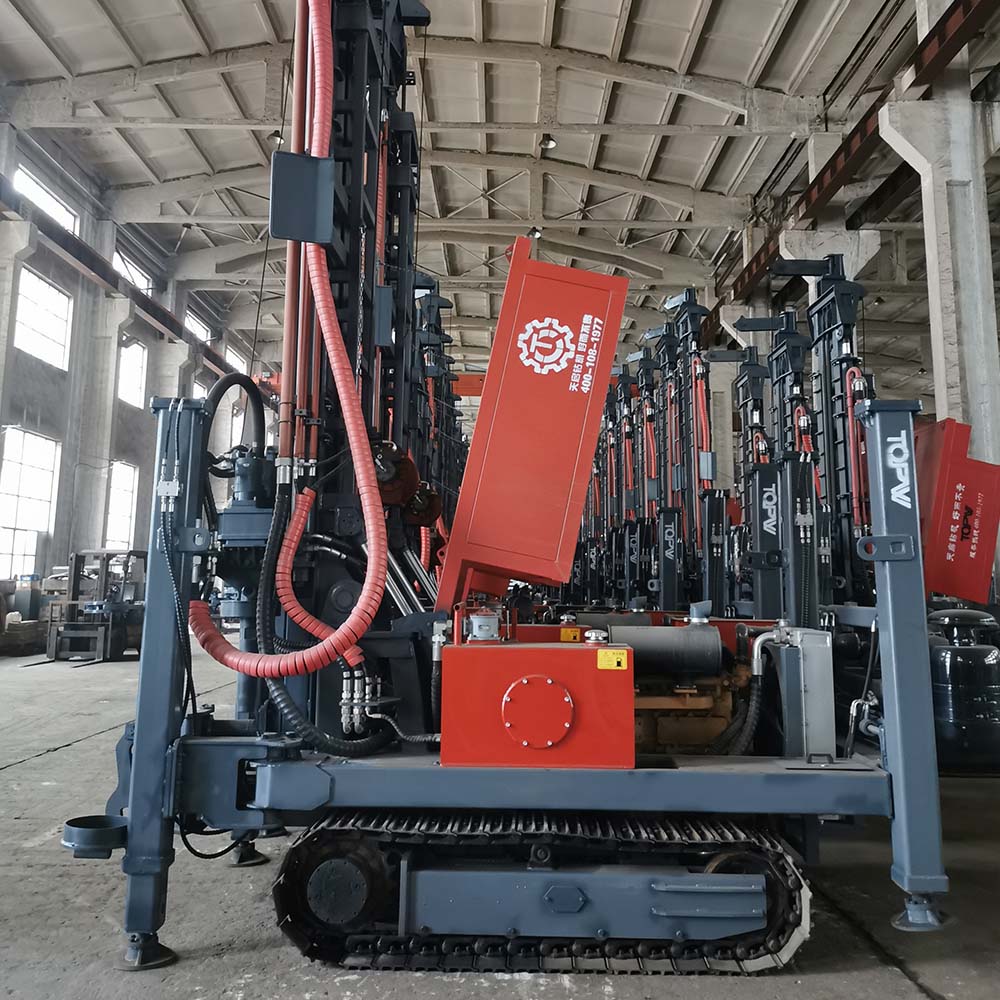

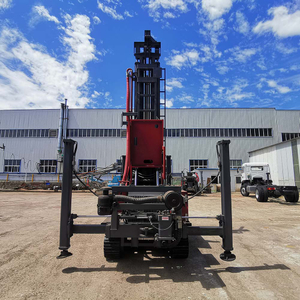

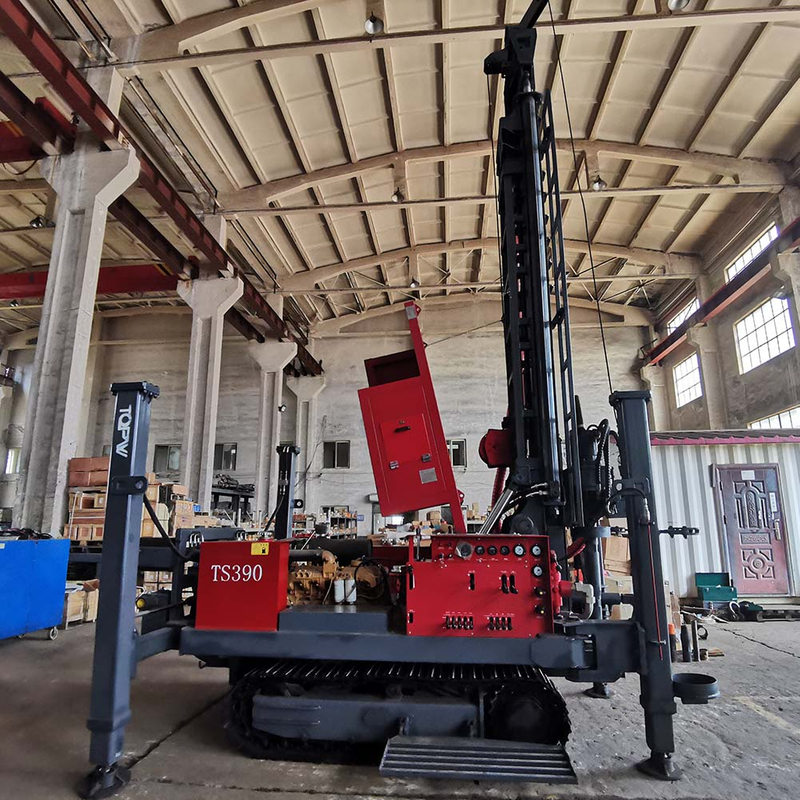

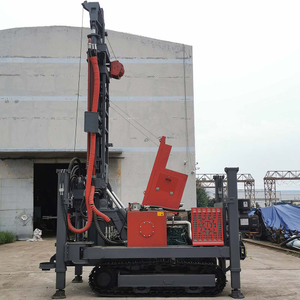

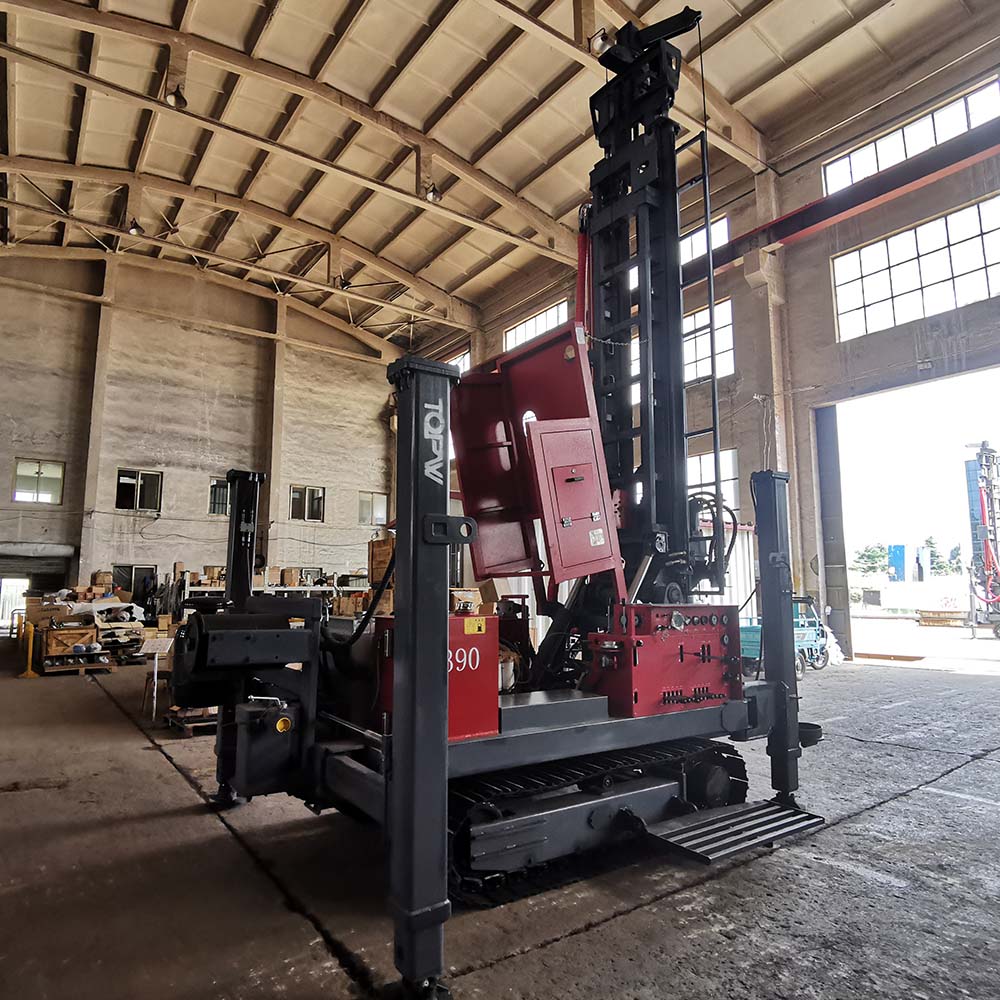

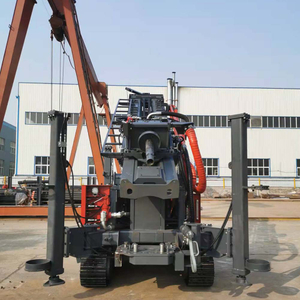

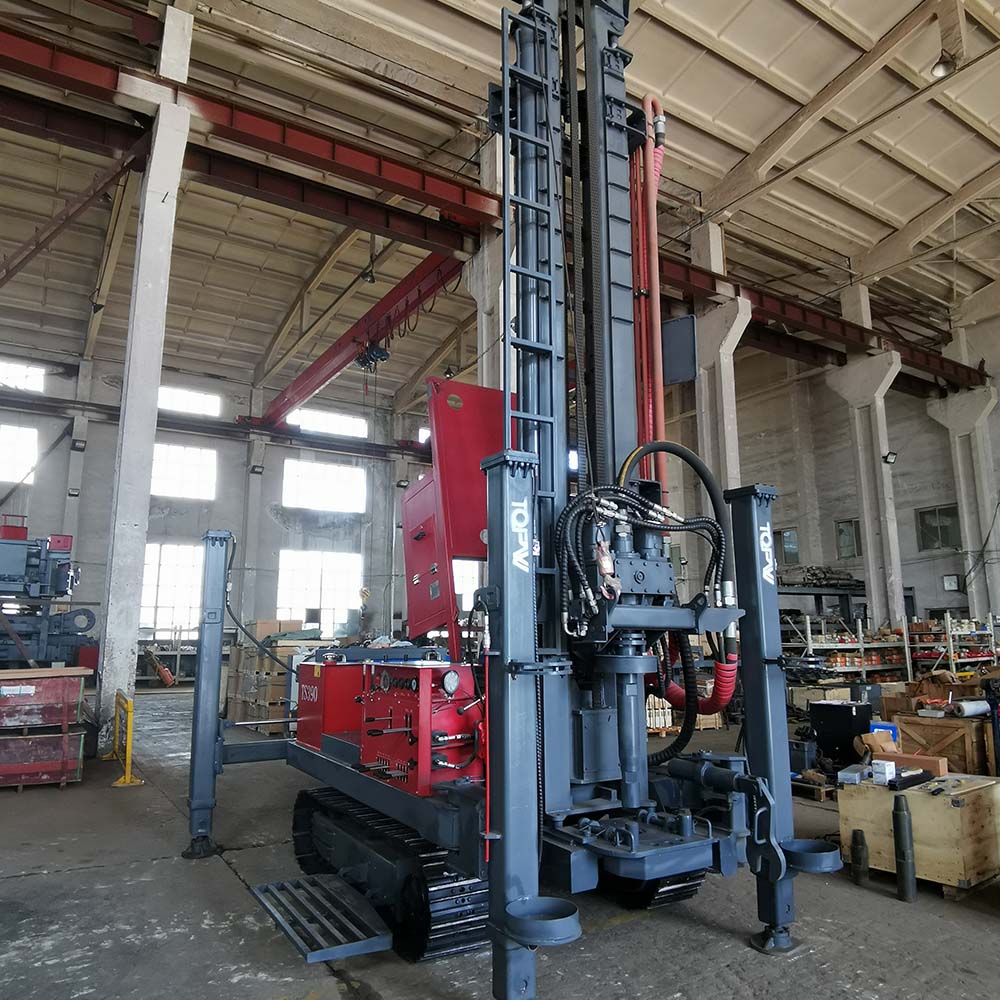

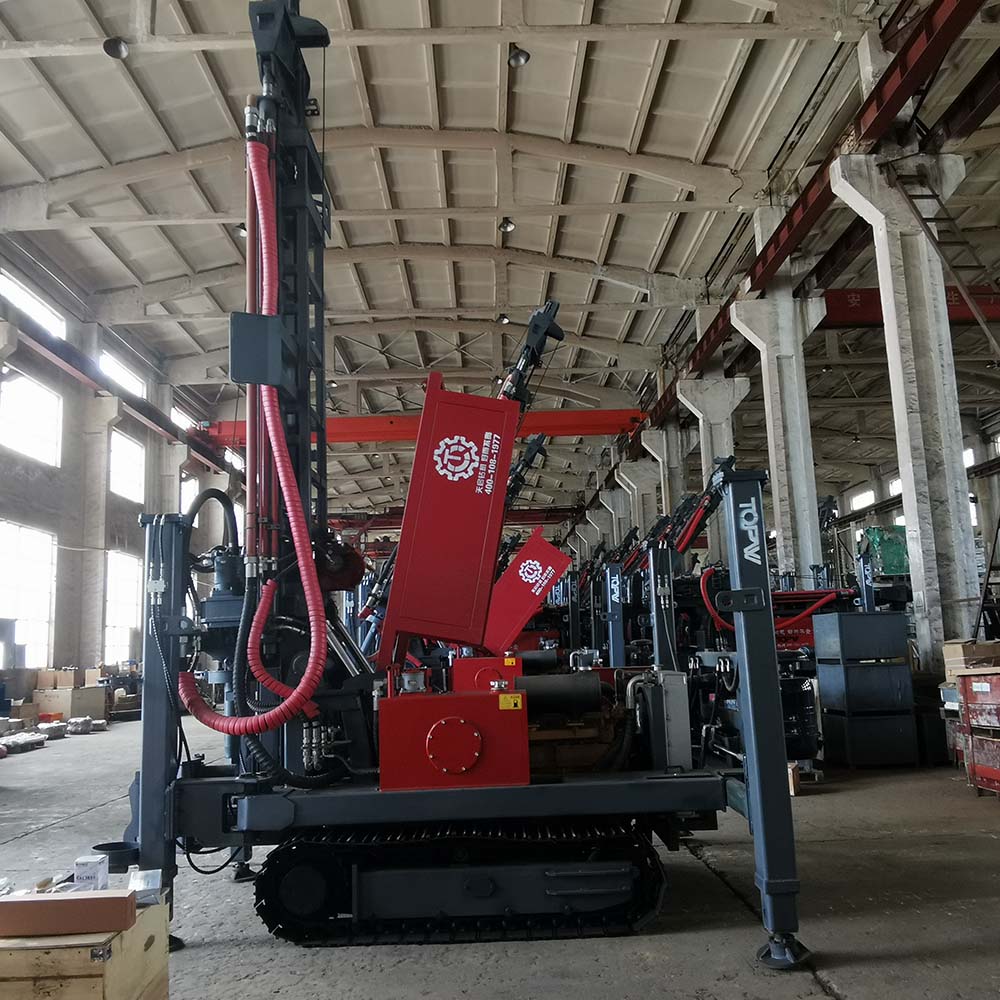

TS390 Drilling Rig

Model

Units

TS390

Drilling capacity

Max drilling depth

m

390

Max drilling diameter

mm

Φ350

Engine

Engine brand

/

Yuchai

Rated power

Kw

92/6

Feed system

Lifting force

T

20

Speed of fast lifting

m/min

30

Feeding force

T

8

Speed of fast putting down

m/min

60

Max feeding stroke

mm

6600

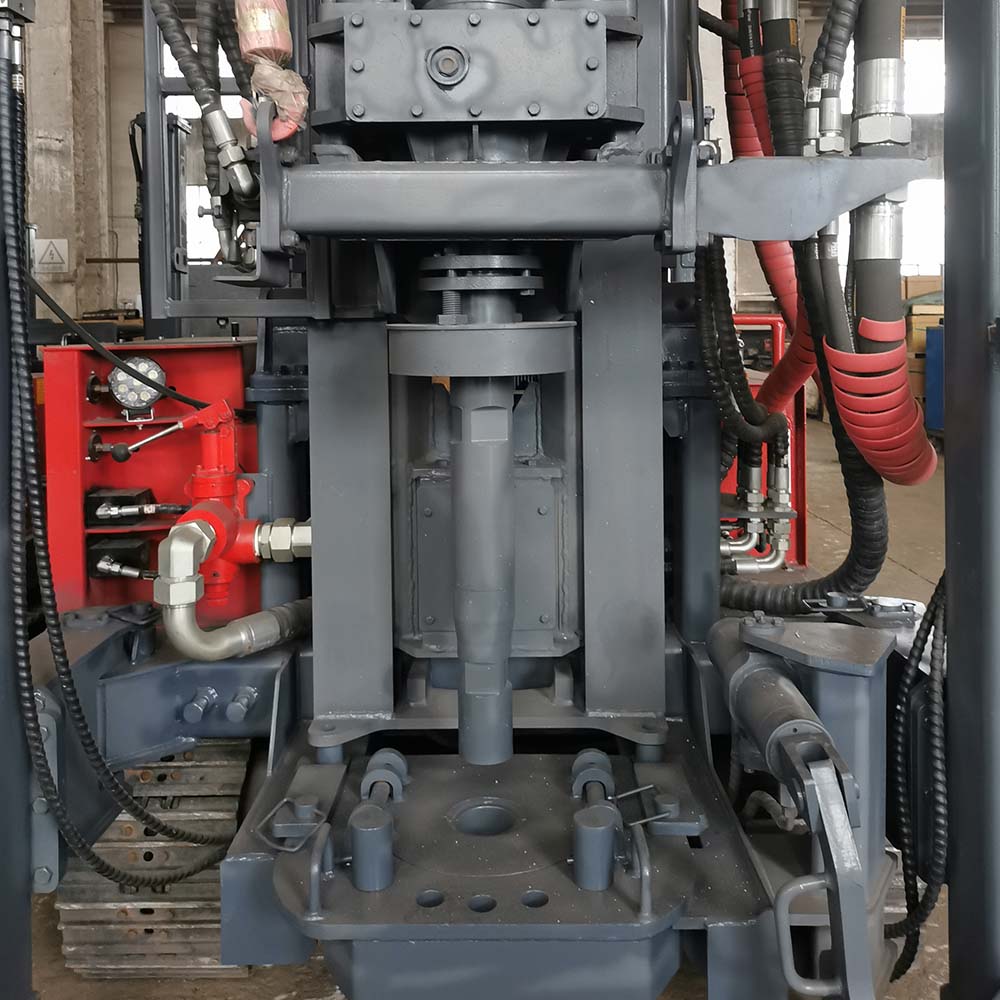

Rotation system

Rotary torque

Nm

8000/4000

Rotary speed

r/min

70/140

Travelling system

Travel speed

Km/h

2.5

Grade ability

°

21

Tool winch

Lifting force

T

1 . 1

Drilling rods diameter

/

mm

89/102

Transport dimension

Length×Width×Height

mm

5700×1750×2340

Work dimension

Length×Width×Height

mm

3750×2800×9350

Machine weight

/

T

7.7

Optional accessories

welding generator、Foam pump、Second winch etc
